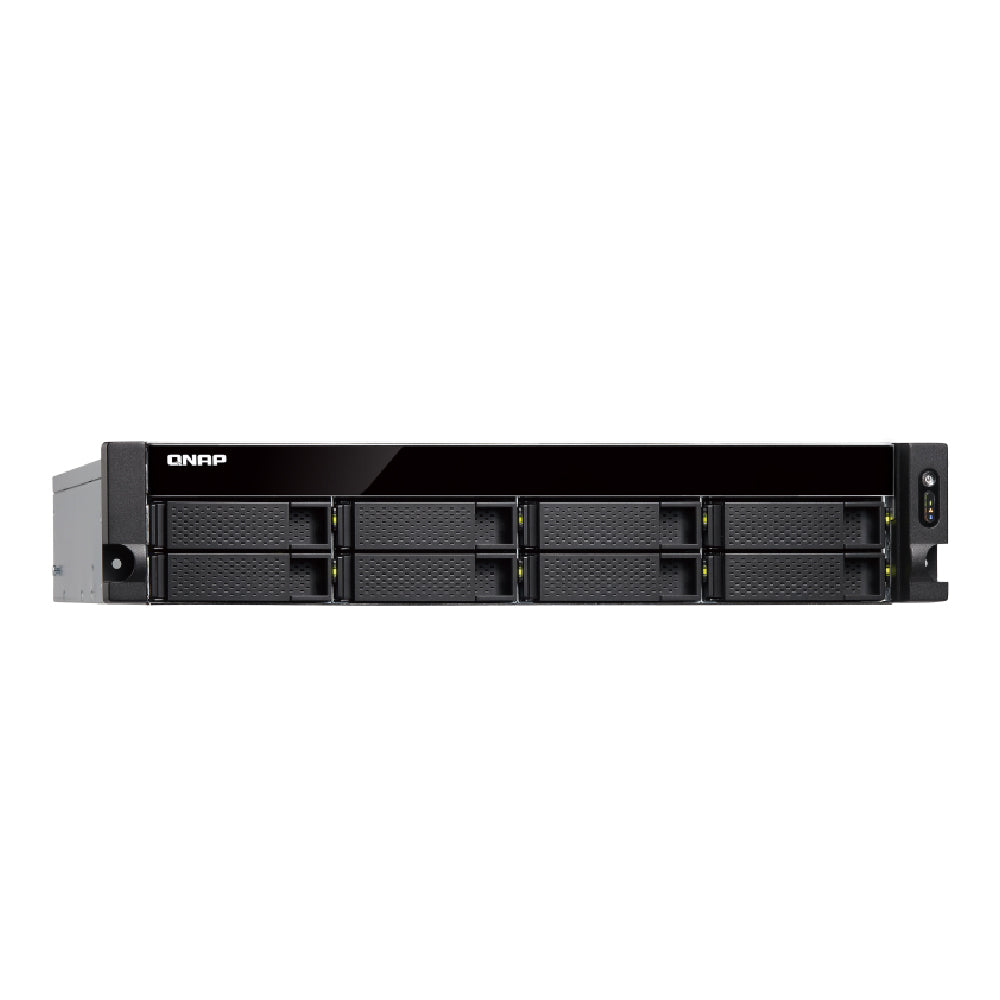

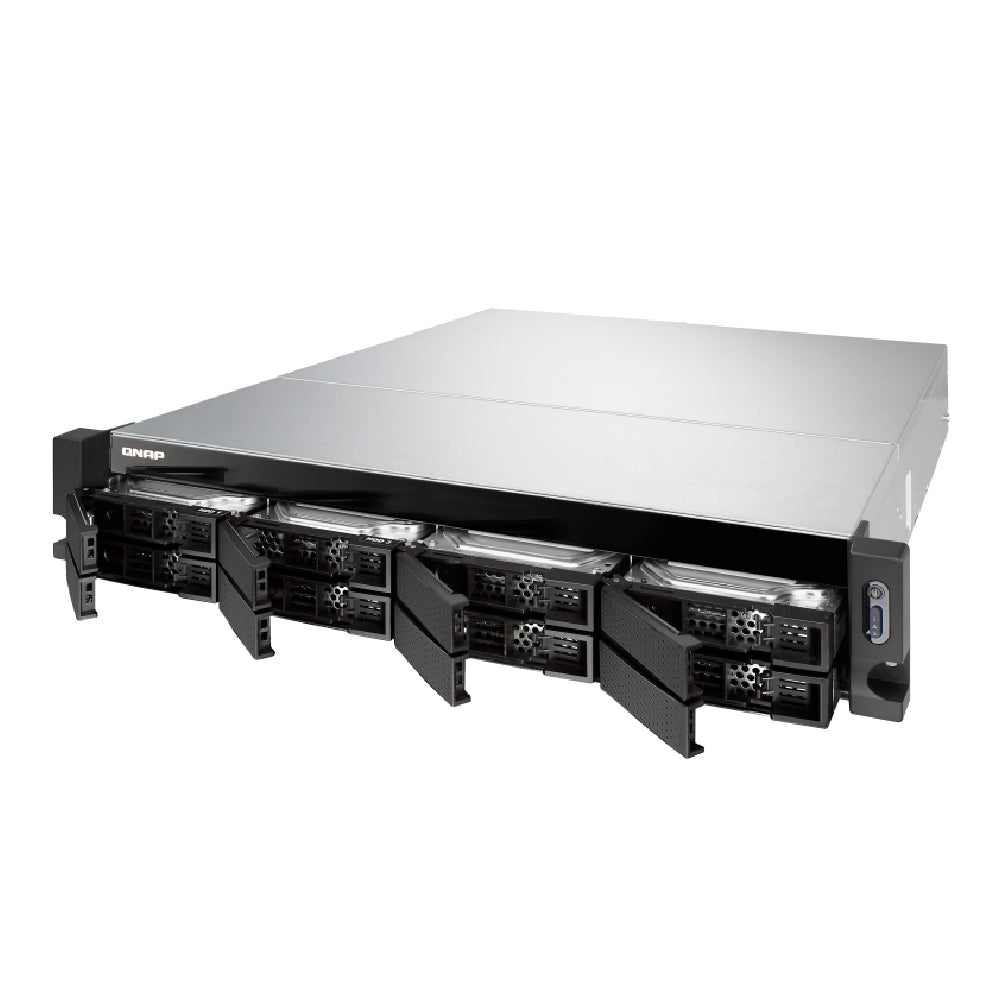

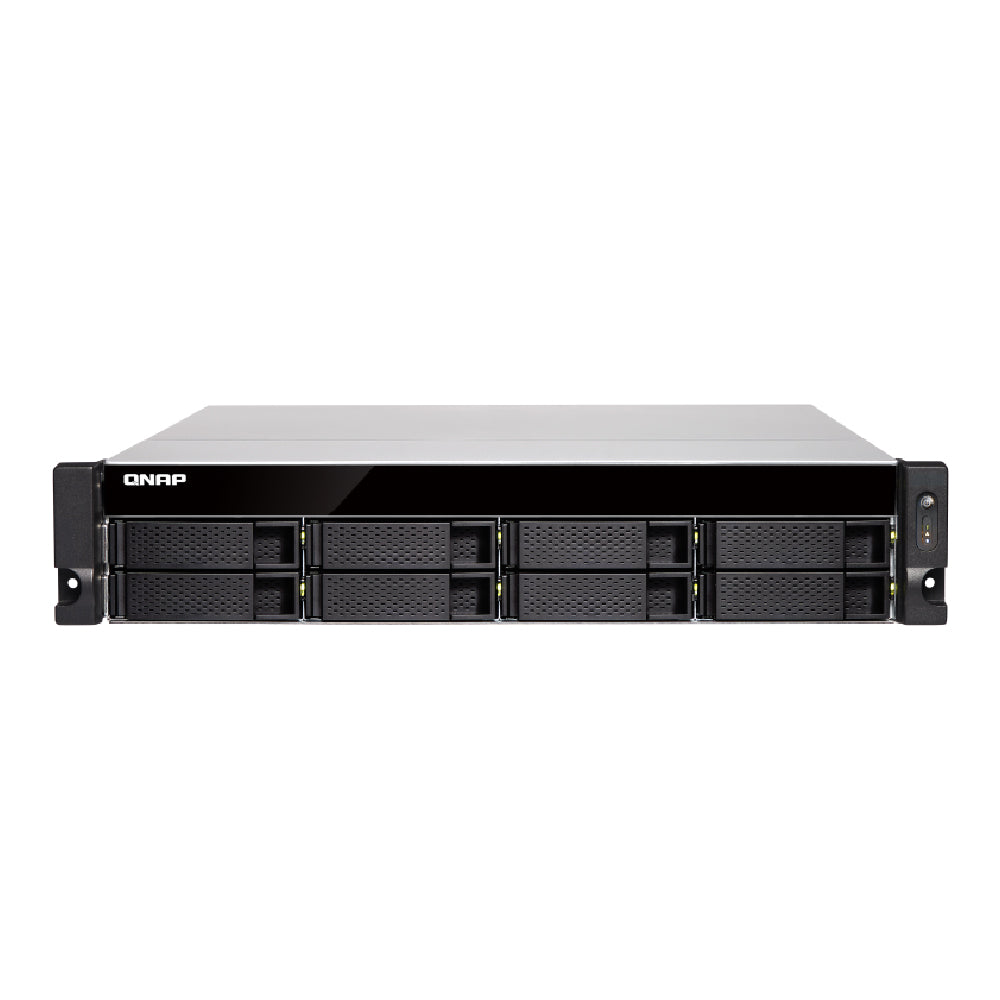

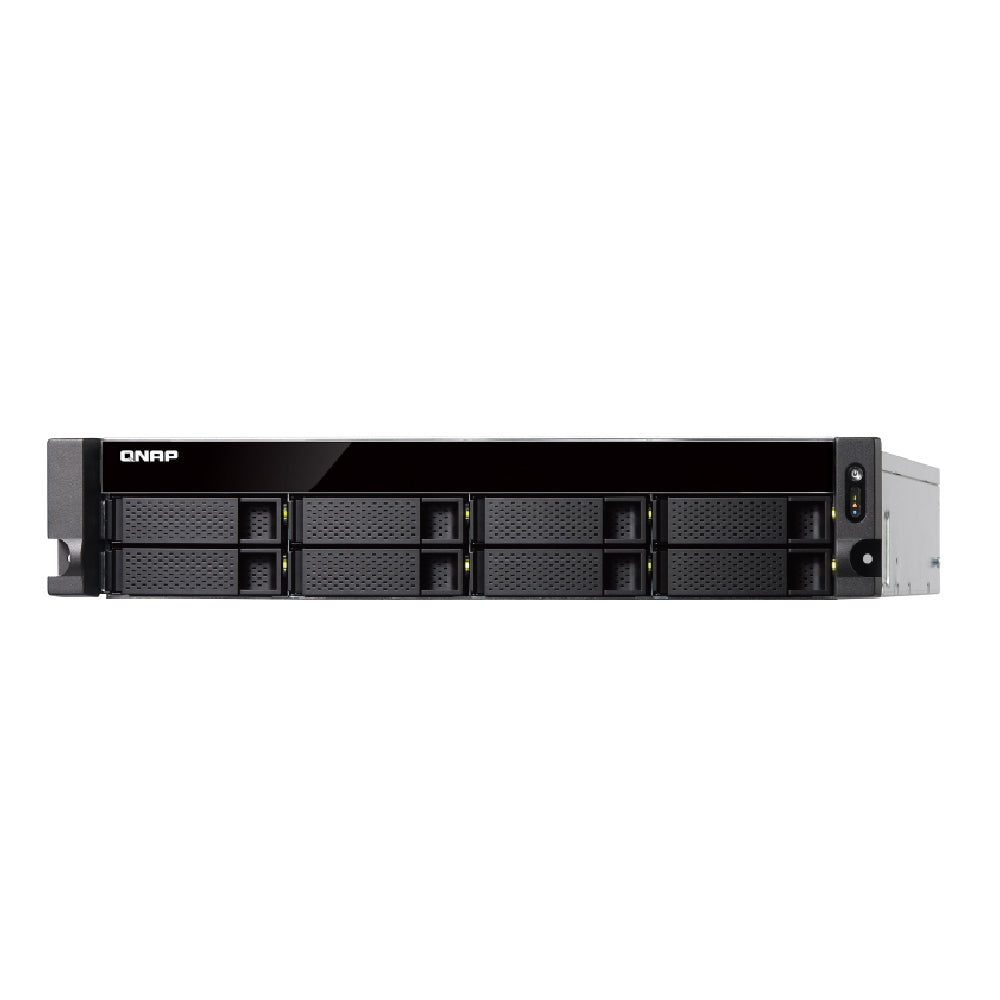

QNAP TS-877XU-RP-3600-8G 8 Bay Ryzen™-based 2U rackmount NAS with 6 cores/12 threads
SKU: TS-877XU-RP-3600-8G
Specifications
Powered by AMD’s powerful Ryzen™ processor, the TS-877XU-RP is capable of boosting virtual machine performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU-RP. The TS-877XU-RP also features a redundant power supply to ensure maximum system uptime.
1
Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
2
PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.
3
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
4
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
5
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
6
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance
Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1288X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.
1 x Thunderbolt™ 3 Sequential Throughput (AJA System Test)
Tested in QNAP Labs. Figures may vary by environment.
NAS: TVS-h1688X installed with a QXP-T32P Thunderbolt™ 3 expansion card
RAID Pool Configuration: 4 x Samsung 850Pro 256GB as RAID 0, with QuTS hero h4.5.0
Cable: Thunderbolt 3 active cable (2 meter)
Client: MacBook Pro (Intel Core-i7 quad-core 2.9GHz, 16GB RAM)
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

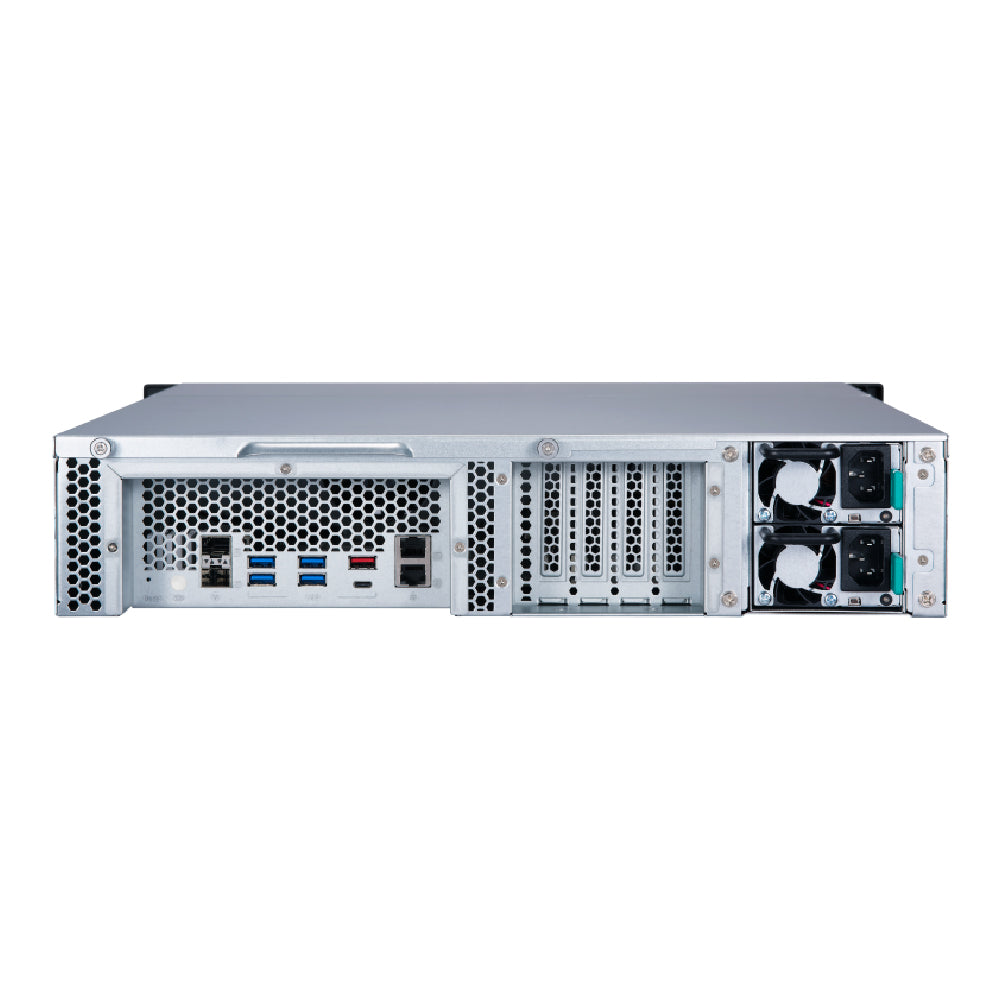

The hardware design of the TS-877XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.
Multi-core AMD Ryzen™ processor
TS-877XU-RP-1200-4G: Featuring a 4-core/4-thread Ryzen™ 3 1200 3.1 GHz processor with Turbo Core up to 3.4 GHz.
TS-877XU-RP-2600-8G: Featuring a 6-core/12-thread Ryzen™ 5 2600 3.4 GHz processor with Turbo Core up to 3.9 GHz.
TS-877XU-RP-3600-8G: Featuring a 6-core/12-thread Ryzen™ 5 3600 3.6 GHz processor with Turbo Core up to 4.2 GHz.
DDR4 2400 MHz memory
Supports four DDR4 dual-channel Long-DIMM memory (expandable up to 64GB).Includes 4GB/8GB RAM as standard.
2 x 10GbE SFP+ ports
Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
USB 3.2 Gen 1/ 3.1 ports
Supports external hard drives, printers and UPS. USB 3.2 Gen 2 provides speeds up to 10Gb/s to greatly boost data transfer performance.
2 x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configurations.
4 x PCIe expansion slots
Supports 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or wireless network cards for greater application potential.
Dual 7cm System fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.
2 x 300W Power Supply Units
Redundant power supplies are provided on both new models to ensure continuous system up-time
Virtualization Certifications Supported by TS-877XU-RP
Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-877XU-RP.
Windows 2 x 10GbE Sequential File Transfer (64KB)
Windows 10GB File Transfer with Encrypted Volume (2 x 10GbE)
Tested in QNAP Labs. Figures may vary by environment.
NAS: TS-877XU-RP-2600-8G with QTS 4.3.4
Volume type: RAID 5; SSDSC2BB240G4* 8 (RAID 5)
Client PC:
Intel® Core™ i7-6700 3.40GHz CPU; 64GB RAM; MLX CX3 10GbE NIC; Windows® 10 64-bit; IOmeter 1.1.0 20 workers 1 outstanding, SMB throughput, 64KB, 30S ramp up time, 3M run time.
Dual-channel Memory to deliver power-smart performance
The TS-877XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-877XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.
Extend NAS functionality with PCIe slots
The TS-877XU-RP features four PCIe slots* that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.
10GbE/ 40GbE adapters
Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.
QM2 card with M.2 SSD/10GbE support
Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
Wireless network cards
Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Install a graphics card for GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-877XU-RP offers a 300 watt power supply and PCIe slots to support low-profile graphics cards that do not need power cables, including AMD Radeon™ or NVIDIA® GeForce® graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.
GPU-accelerated NAS for AI machine learning
The TS-877XU-RP provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented Big Data storage solutions. Combined with a high-end graphics card and QNAP's “QuAI” AI developer package, the AMD Ryzen-based TS-877XU-RP can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.
SSD caching and auto tiering enable 24/7 optimized storage efficiency
The TS-877XU-RP provides four PCIe slots that allow for installing QNAP's innovative QM2 cards to add M.2 SSD applications ,such as SSD caching, to the NAS. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-877XU-RP with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, high-capacity SATA drives, and the optional PCIe NVMe SSD with around-the-clock acceleration. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Performance & reliability. Your wise choice.
The TS-877XU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.
RAID 50/60
When using a NAS with over 6 disk bays, RAID 50/60 not only provides greater data protection and random write performance than a single RAID 5/6, but also maximizes usable storage compared to RAID 10.
USB 3.2 Gen 2
USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. The TS-877XU-RP comes with a USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices.
Central management
Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.
Performance & reliability. Your wise choice.
With the built-in dual 10GbE ports that natively features NVIDIA® Mellanox ConnectX-4, the TS-877XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-877XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
1. 4x 2.5-inch SATA 6Gb/s SSD bays
Offers flexible configuration for cache acceleration to boost IOPS performance.
2.8x 3.5-inch drive bays
Supports SATA 6 Gb/s drives; lockable trays.
3. DDR4 ECC memory
Four DDR4 Long-DIMM slots supporting up to 128 GB RAM.
4. 2x M.2 NVMe SSD slots
Supports NVMe Gen 3 x4 M.2 SSD with the 2280/22110 form factors for enabling cache acceleration.
Note: M.2 SSD sold separately.
5. Intel® Xeon® W processor
Intel® Xeon® W-1250 6 cores processor with up to 4.7 GHz speeds.
6. 2x PCIe Gen 3 x4 expansion slots
Supports QXP-T32P Thunderbolt™ 3 expansion cards, 5/10/25/40GbE network expansion cards, QM2 cards, graphics cards, or QXP PCIe SATA expansion cards for greater application potential.
7. Audio input and output
Output to speakers and connect a microphone.
8. 2x 10GBASE-T Ethernet ports
The PCIe Gen 3 x8 slot is pre-installed with a dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking.
9. 5x USB 3.2 Gen 2 (10Gbps) ports
Delivers up to 10Gbps transfer speeds. Supports QNAP TL USB JBOD, external hard drives or UPS.
10. 1x HDMI 1.4b output
Supports up to 4096 x 2160 @30Hz high resolution for optimal visual experience.
11. 4x 2.5GbE RJ45 ports
Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 5 Gbps under Port Trunking.
12. Smart cooling
Monitors system temperatures and automatically adjusts fan speeds.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-877XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-877XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
High-speed VM Backup Solution
With Hyper Data Protector, the TS-877XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Tiered storage configuration for a QuTS hero NAS
Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.
HBS 3
QuDedup technology deduplicates data at the source, help to reduce the time and storage needed for backup.
VJBOD Cloud
Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.
HYbirdMount
Enabling local caching on NAS for latency assess to connected cloud services.
Qumagie
Integrated AL algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-877XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.
All-in-one virtual machine and container hosting solution
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.
Virtualization Station
Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.
Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.
QTS–Intelligent, intuitive and creative NAS operating system
With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.
Optimized collaboration with seamless file sharing and sync
The TS-877XU-RP centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-877XU-RP will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.
Complete backup planning
The TS-877XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-877XU-RP supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-877XU-RP are perfect for backing up virtual machines.
The new QVR Pro surveillance solution
QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-877XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.
Flexible and economical storage expansion
You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
VJBOD
Upgrade RAID Capacity
Migrate to a New NAS
Attach Expansion Enclosures
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-877XU-RP
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Connect up to 8 REXP-1620U-RP/REXP-1220U-RP* or up to 2 UX-1200U-RP/800U-RP expansion enclosures. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
More Productivity Applications
Q’center
Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.
Browser Station
Enable remote access through NAS browsers to access local LAN resources without going through complex VPN setting.
IFTTT Agent
A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets
Mobile Apps
Simplify file access, NAS management, multimedia entertainment, surveillance, and download tasks on mobile devices with QNAP mobile apps.
Extend hardware warranty up to 5 years
The TS-877XU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.
