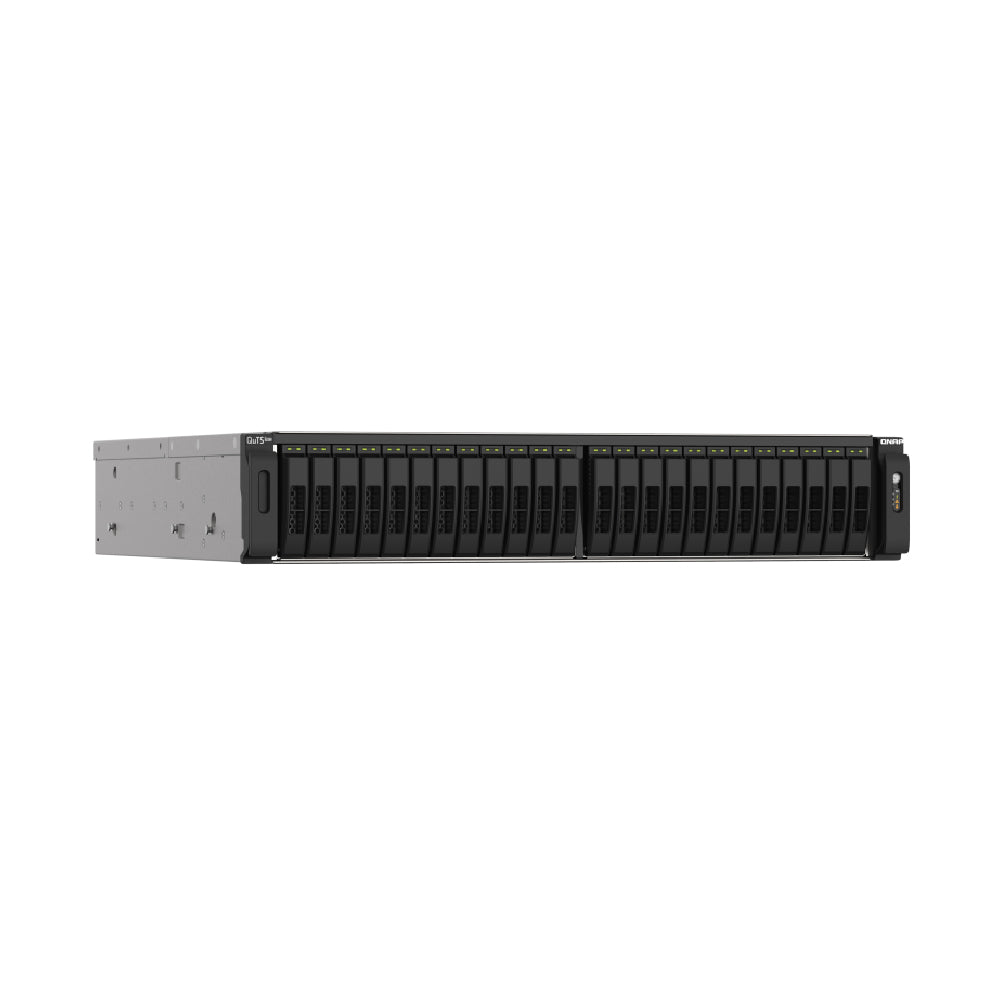

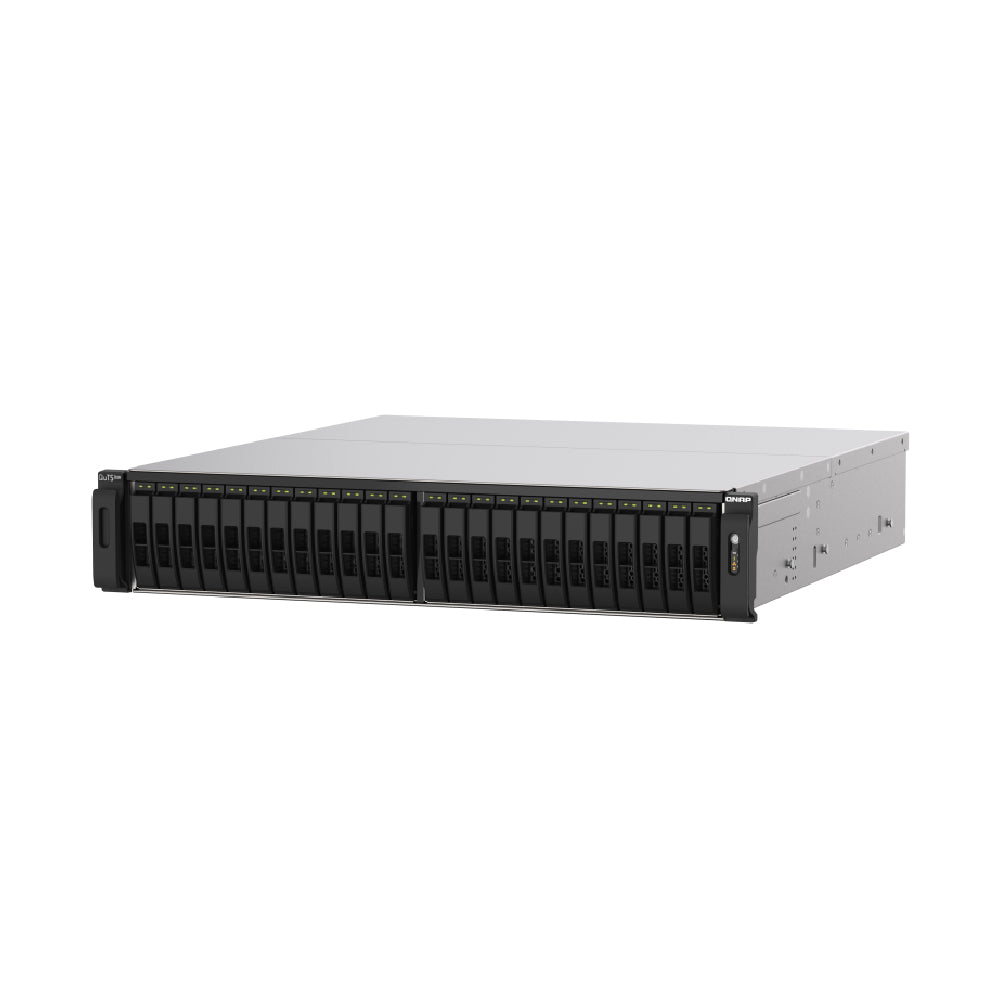

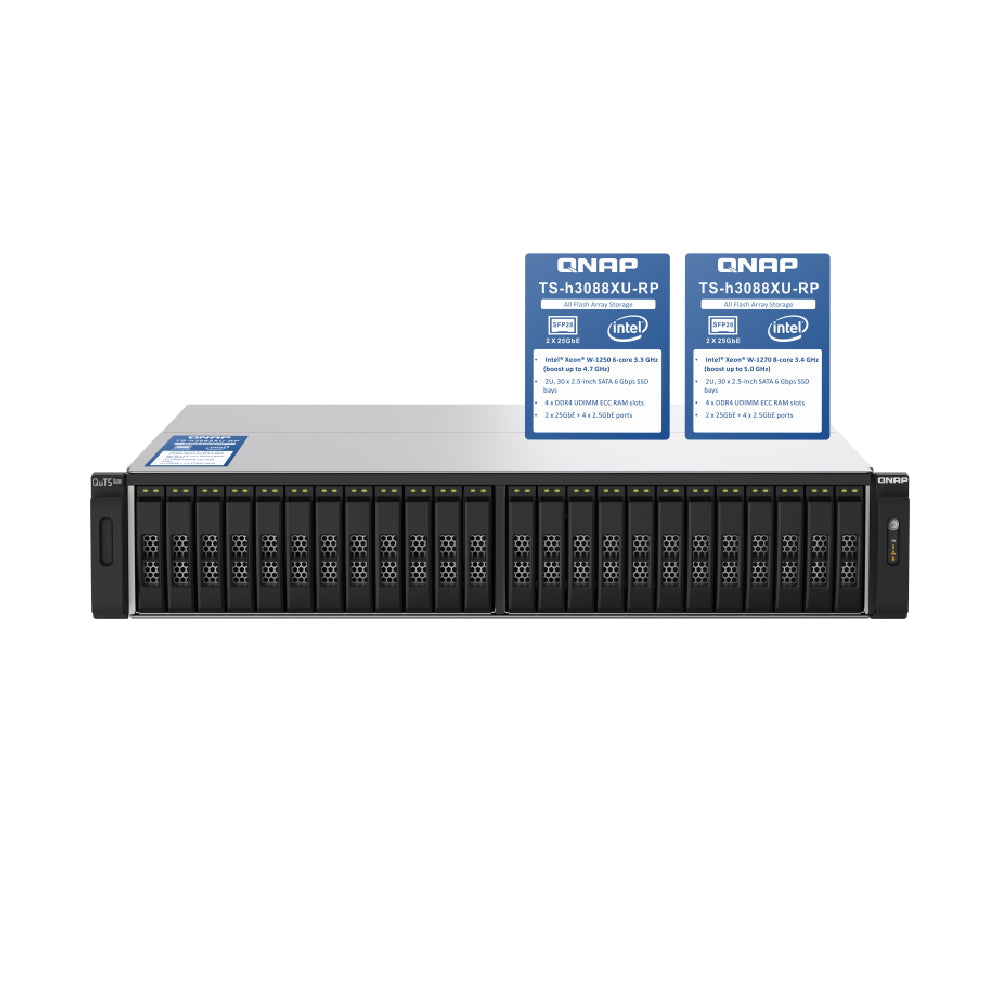

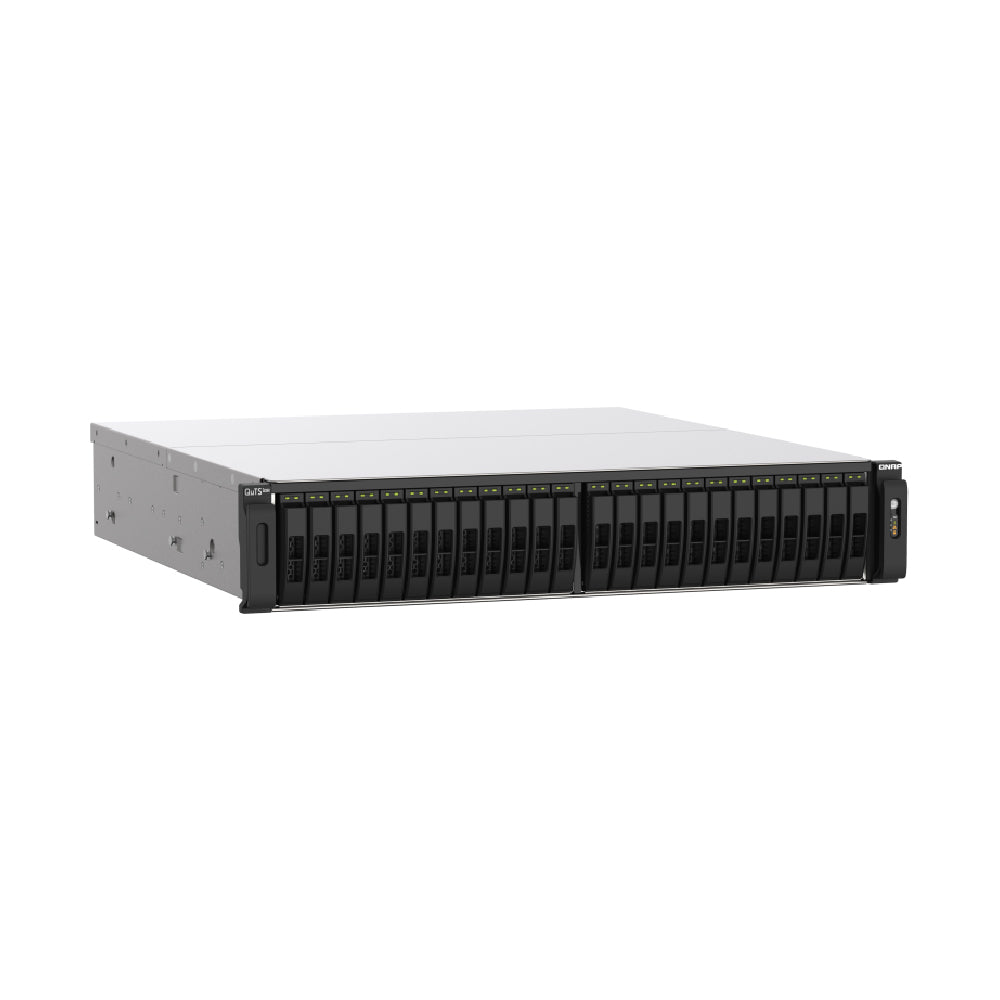

QNAP TS-h3088XU-RP 30 Bay 2U rackmount NAS with built-in dual-port 25GbE SFP28 SmartNIC, four 2.5GbE LAN ports
SKU: TS-h3088XU-RP-W1250-32G
Specifications
The 2U rackmount TS-h3088XU-RP provides a cost-efficient all-flash storage solution for tackling I/O-intensive and latency-sensitive enterprise applications. With 30 drive bays for 2.5-inch SATA 6Gb/s SSDs, built-in dual-port 25GbE SFP28 SmartNIC, four 2.5GbE LAN ports, PCIe expandability, and up to petabyte-scale storage capacity, the TS-h3088XU-RP satisfies uncompromising performance demands in virtualization, modern data centers, hybrid/multi-cloud applications, mission-critical backup/restore tasks, and file servers that allow thousands of simultaneous connections. The QuTS hero operating system features ZFS data reduction and SSD optimization technologies to get the utmost performance, lifespan, and efficiency from your SSD investments!
1
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
2
Dual 25GbE SFP28 and quad 2.5GbE RJ45 high-speed connectivity accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks.
3
PCIe Gen 3 slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
4
Supports virtualization storage and hosting virtual machines and containerized apps.
5
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
6
Scalable design to grow with your business by connecting up to sixteen SAS 12Gb/s TL-1620Sep-RP expansion enclosures to attain petabyte-scale storage capacity of 286 disk drives.
Build high-performance storage infrastructure for IOPS-demanding applications
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
High-capacity 30-bay SATA all-flash array that meets your business budget
With a large storage capacity and high I/O performance, the TS-h3088XU-RP provides a flexible yet economical SATA all-flash storage solution. It is perfect for budget-conscious businesses who seek an affordable all-flash storage architecture to run multiple business-critical and performance-demanding applications.
Powerful Intel® Xeon® W processors supporting up to 128 GB DDR4 ECC memory
Featuring Intel® Xeon® W-1200 series processors, the TS-h3088XU-RP provides options of 6-core and 8-core models with frequency performance of up to 5.0 GHz and enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine helps maintain the security of NAS data without impacting performance. With dual-channel modules and 4 Long-DIMM slots, the TS-h3088XU-RP’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.
Extreme all-flash performance
To get the utmost performance from the TS-h3088XU-RP, we recommend:
The front 24 SSDs should be configured as data pool #2 in RAID 6 or RAID 60 (yields the best performance). The rear 6 SSDs should be configured as pool #1 in RAID 6 (as system and app pool/small data storage).
2 x 25GbE iSCSI, Random IOPS (4K), Compression On, Dedupe Off
2 x 25GbE, Sequential Throughout (512K), Compression On, Dedupe Off
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h3088XU-RP-W1270 with QuTS hero h4.5.1
Volume type: Seagate IronWolf Pro 125 SSD *30 (24* SSDs for RAID 60 + 6* SSDs for RAID 6); NVIDIA® Mellanox Dual-port 25GbE NIC with ConnectX-4 Lx SmartNIC controller
Client PC:
2* Client PC simultaneously read and write 8GB file (= 16GB totally)
Intel Xeon E-2124 4.3GHz CPU, 64GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016
Dual 25GbE connectivity optimizes data transfer and VMware virtualization with iSER
The TS-h3088XU-RP provides four 2.5GbE RJ45 ports (supports 2.5/1GbE) and has a built-in dual-port 25GbE SFP28 SmartNIC (supports 25/10/1GbE) with the NVIDIA® Mellanox ConnectX-4 Lx SmartNIC controller that supports iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and ESXi server and offload CPU workloads. With Port Trunking and Auto-Negotiation, the TS-h3088XU-RP empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS and also satisfy the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. The TS-h3088XU-RP is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure and scalable network environments without going over budget.
Virtualization Certifications Supported by TS-h3088XU-RP
Abundant I/O capability with PCIe expansion
The TS-h3088XU-RP features three PCIe Gen 3 slots that enable using numerous expansion cards for expanding application potential. (One slot comes pre-installed with a dual-port 25GbE network card.)
10GbE/25GbE/40GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup or restoration.
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
SATA/SAS storage expansion cards
Designed for connecting the TS-h3088XU-RP to SAS 12GB/s or SATA 6GB/s expansion units for petabyte-scale storage capacity.
Direct 4K HDMI output for multimedia and virtual machine content
The TS-h3088XU-RP features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TS-h3088XU-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, virtual machine OS desktop from Virtualization Station, or Ubuntu Linux Station desktop for system maintenance.

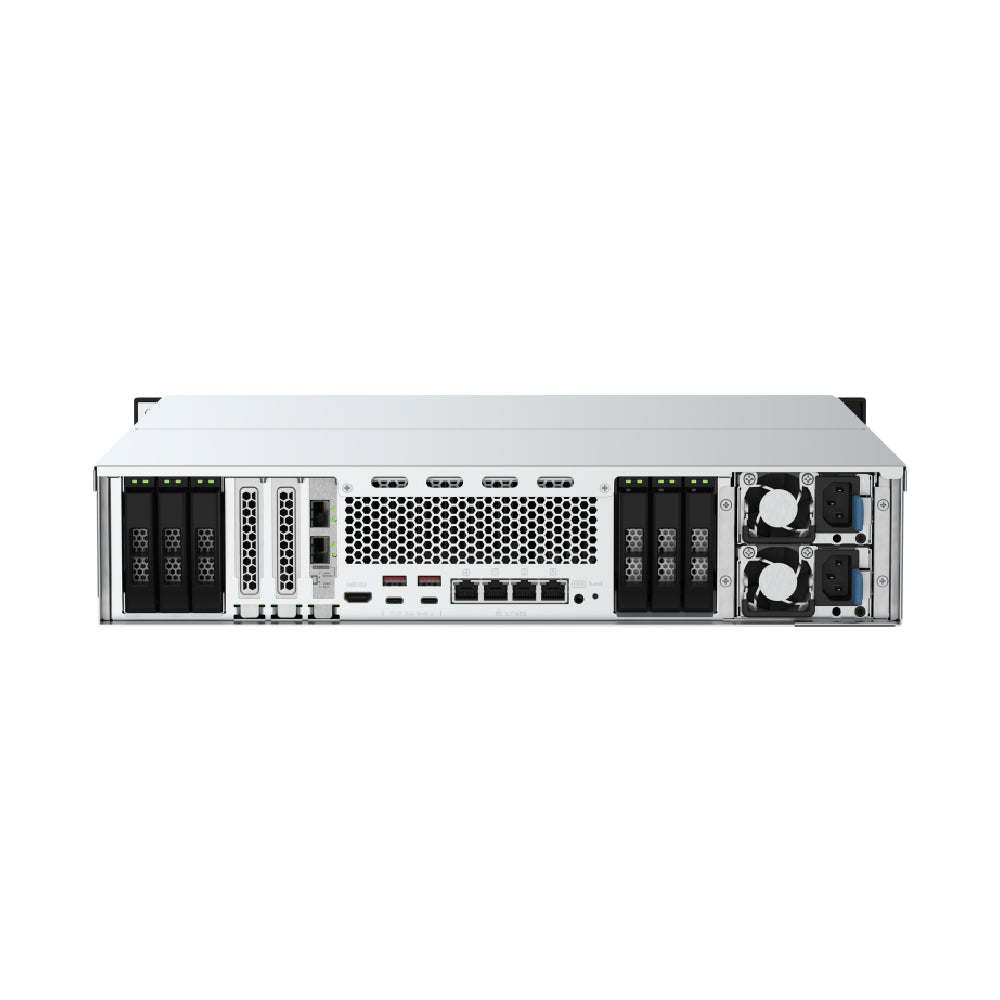

Exceptional hardware to boost all-flash performance
The TS-h3088XU-RP features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access.
1. 30x 2.5-inch SATA 6Gb/s SSD drive bays
Solid state drives deliver higher speed, lower latency, and lower power consumption, making them essential for mission-critical business applications or video editing workflows. Supports flexible configuration for cache acceleration to boost IOPS performance.
2. Intel® Xeon® W processor
• TS-h3088XU-RP-W1270-64G: Intel® Xeon® W-1270 8 cores/16 threads 3.4 GHz processor (Turbo Boost up to 5.0 GHz)
• TS-h3088XU-RP-W1250-32G: Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Turbo Boost up to 4.7 GHz)
3. DDR4 ECC memory
Four DDR4 UDIMM ECC memory slots supporting up to 128 GB RAM.
4. 3x PCIe Gen 3 slots
Supports installing 5/10/25/40GbE network cards, QM2 cards, Fibre Channel cards, and SAS/SATA storage expansion cards for greater application potential (one slot comes pre-installed with a dual-port 25GbE NIC).
5. 2x 25GbE SFP28 LAN ports
Includes a dual-port 25GbE SmartNIC that supports up to 50 Gbps bandwidth under Port Trunking. Uses a NVIDIA® Mellanox ConnectX-4 Lx SmartNIC controller with iSER support.
6. 1x 4K HDMI 1.4b output
Supports up to 4096 x 2160 @30Hz.
7. 4x USB 3.2 Gen 2 (10Gbps) ports
Including two Type-A and two Type-C ports that deliver up to 10 Gbps transfer speeds. Supports external hard drives or UPS.
8. 4x 2.5GbE RJ45 LAN ports
Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 10 Gbps under Port Trunking.
9. Redundant power supply
Redundant 550 watt power supplies ensure continuous system uptime.
10. Smart cooling
Monitors system temperatures and automatically adjusts fan speeds.
11. Air ducts
Provides dedicated and centralized air flow to effectively disperse SSD heat.
More SSD performance and lifespan optimization technologies
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3088XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
The TS-h3088XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3088XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h3088XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h3088XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
High-performance, reliable storage solution for virtualization
● Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
● Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h3088XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Comprehensive security and privilege settings
The TS-h1290FX is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Ubuntu Linux Station
Run Ubuntu® applications (including apps from the Ubuntu Software Center) directly on the NAS. Access the Ubuntu® desktop locally using HDMI output or remotely via web browser.
Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Qfiling
Automate your file organization by creating custom file organization rules with filters, editing modules, file destination, and scheduled/real-time tasks. It’s easy, smart, and efficient!
QuObjects
Designed for object service developers; allows for creating high-performance S3 compatible development environments on a NAS to simplify service development workflows from testing to production.
Extend hardware warranty up to 5 years
The TS-h3088XU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
