SMALL BUSINESS CONTROL

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.

WORK FROM HOME CONTROL

Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.

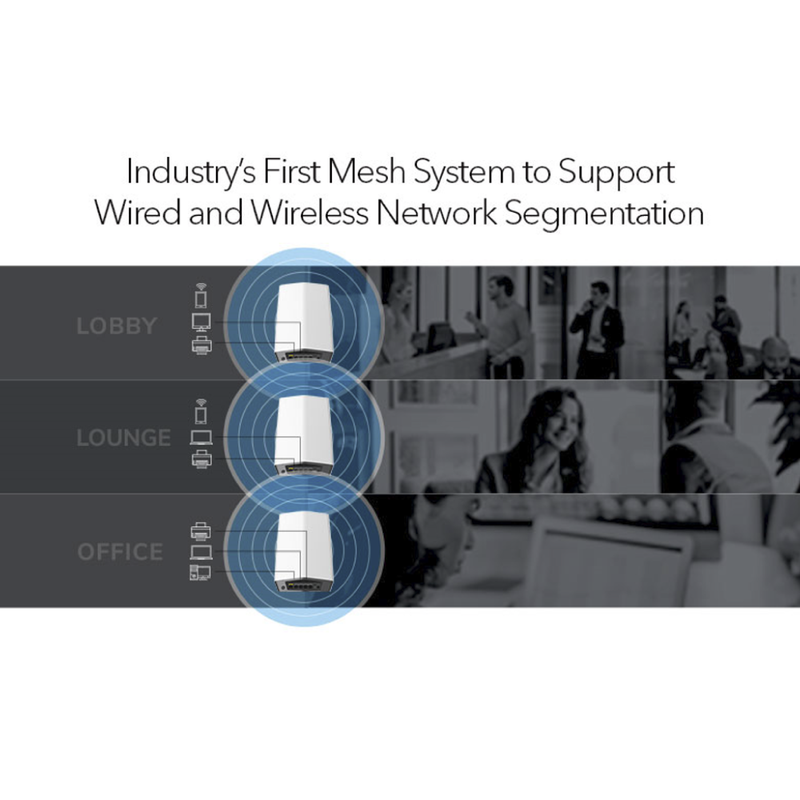

UNRIVALED SECURITY WITH
NETWORK SEGMENTATION

Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.

THE BEST
PERFORMANCE,
PERIOD

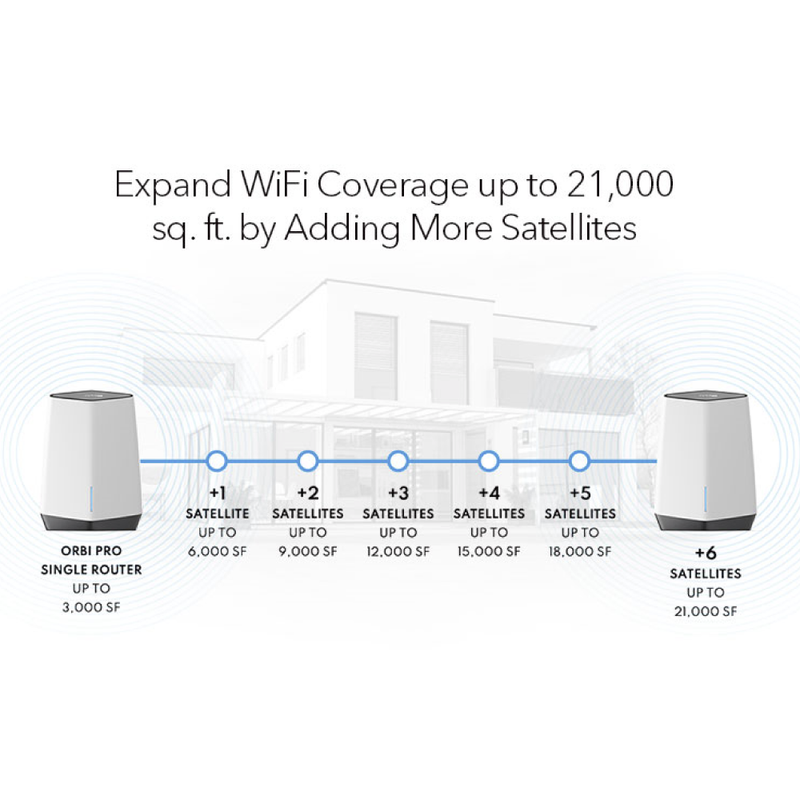

Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

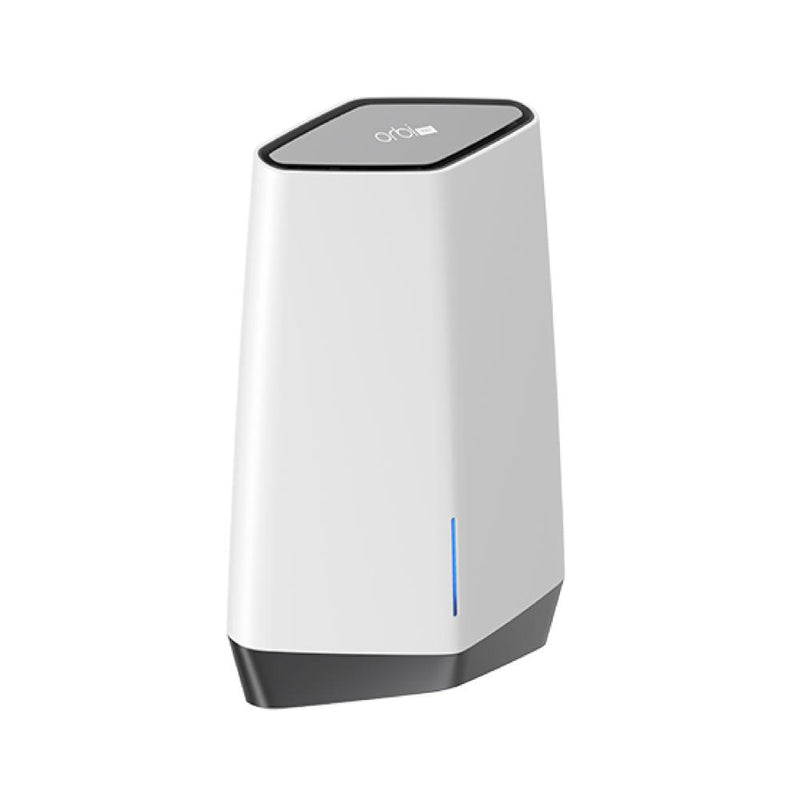

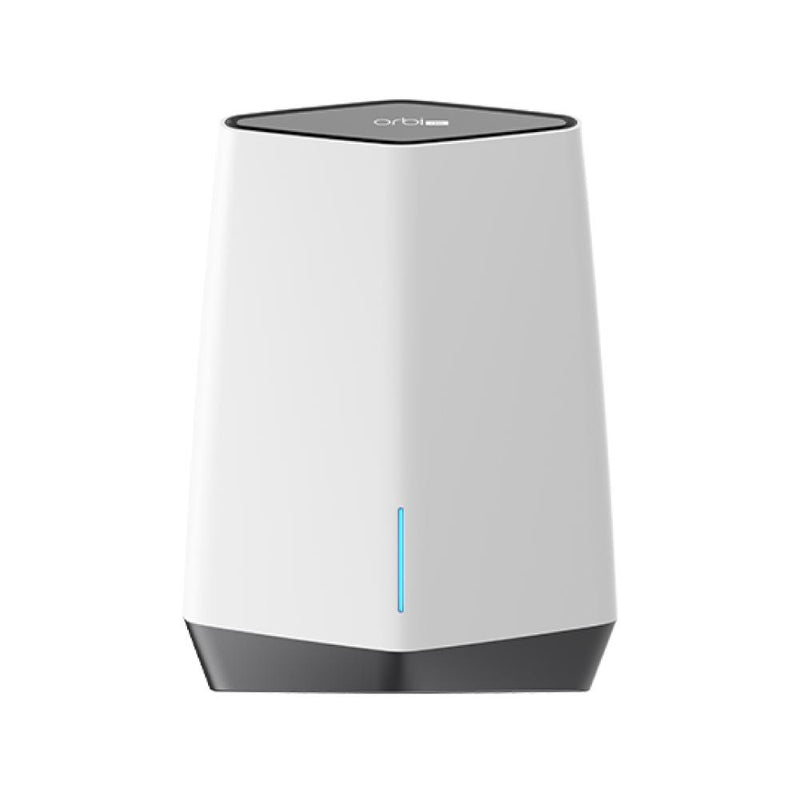

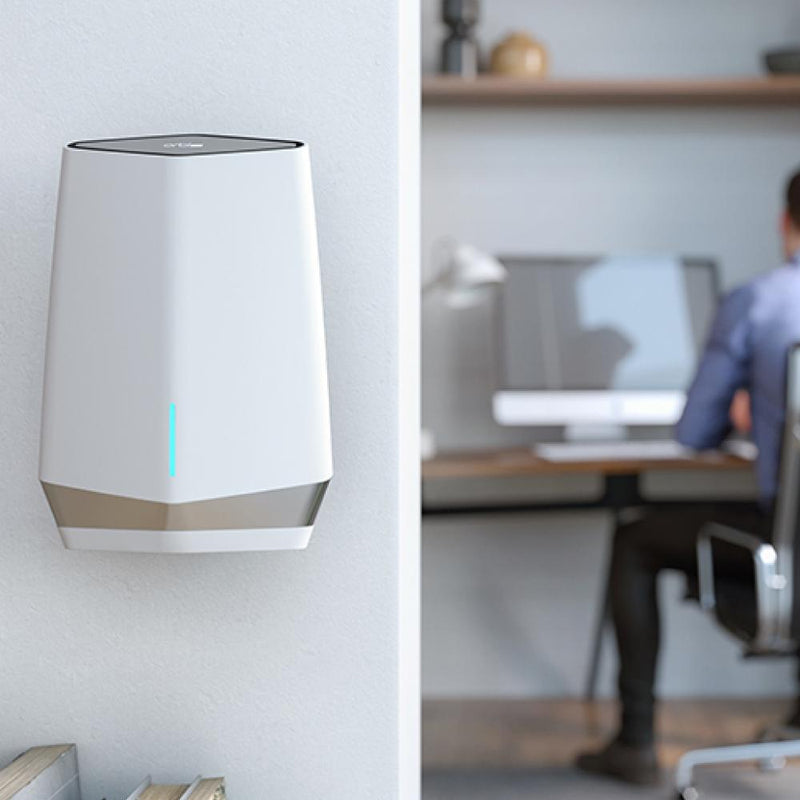

Orbi Pro WiFi 6 Router (SXR80)

Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb

Orbi Pro WiFi 6 Satellite (SXS80)

Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb each

WiFI Technology

(2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi

Radio 1

IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support

Radio 2

IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

Radio 3

IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

Antennas

Eight (8) high-performance antennas with high-power amplifiers

MU-MIMO

OFDMA and bi-directional MU-MIMO WiFi 6 throughput. MU-MIMO capable for simultaneous data streaming on multiple devices

TWT

TWT (Target Wait Time) for longer smartphone battery life

Beamforming

Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands

Link Aggregation Grouping

Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG. Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG

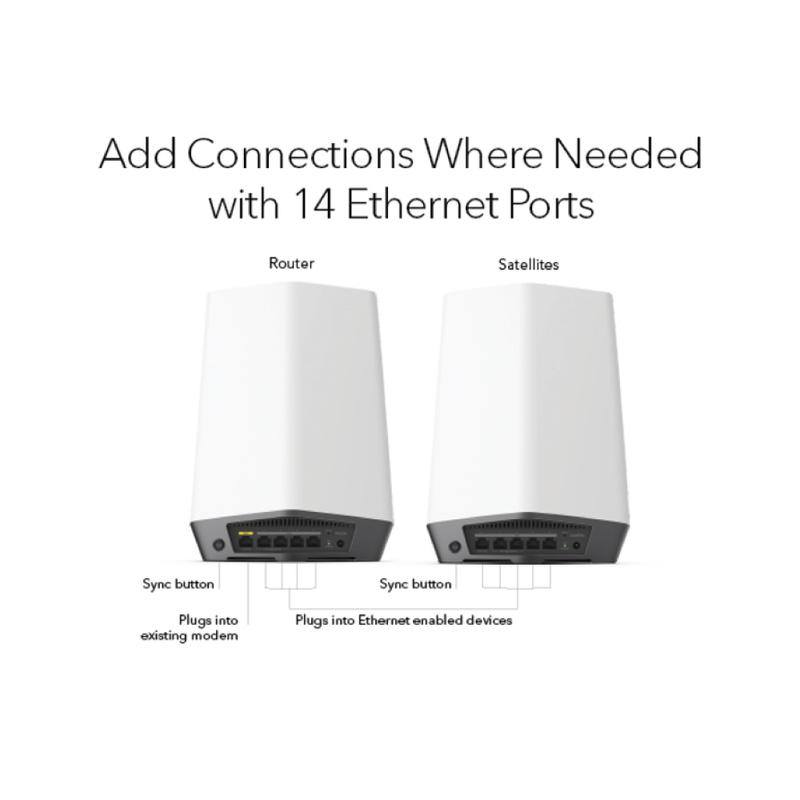

Ports – Orbi Pro WiFI 6 Router

One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port. Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional. Two (2) Gigabit Ethernet LAN ports

Security

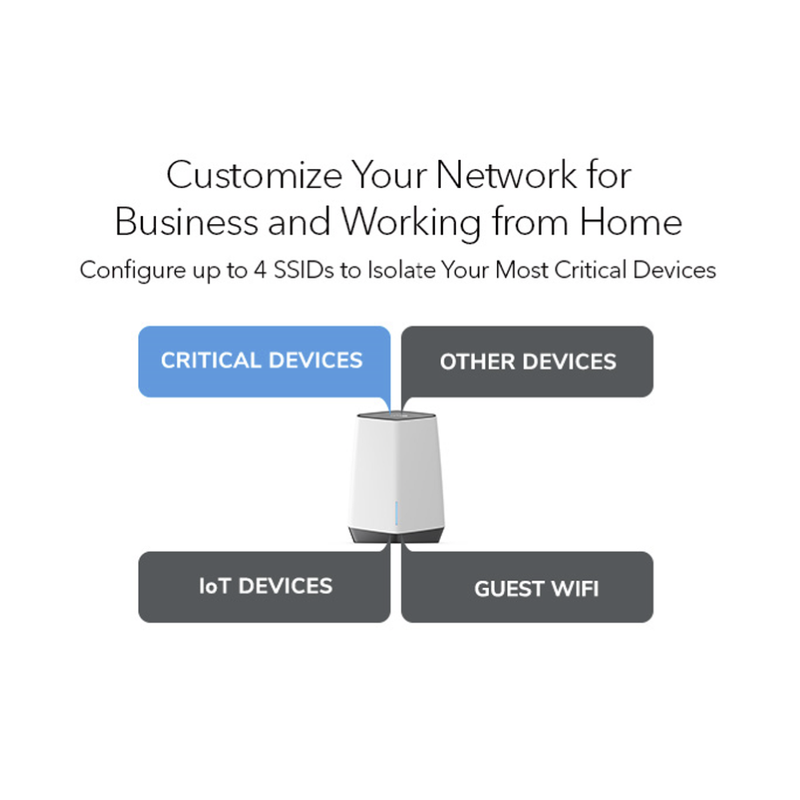

Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices). Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support.

Insight

Insight App - Secured cloud and local management

Local Admin

Local Admin UI available for extensive feature setting and maintenance

Warranty

3-Years Warranty

Package Content

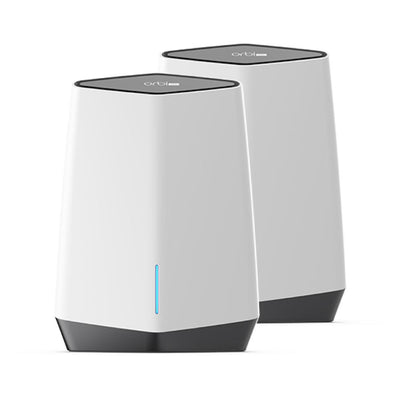

One (1) Orbi Pro WiFi 6 Router (SXR80)
Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
Three (3) wall mounts with screws
One (1) 2m Ethernet cable
Three (3) 12V/3.5A power adapters Installation guide
