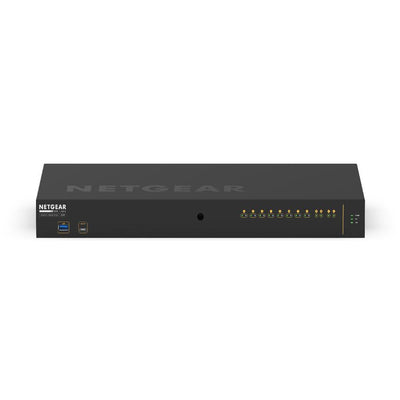

NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch

SKU: XSM4216F-100EUS
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switchv
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch
NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch

NETGEAR AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch

SKU: XSM4216F-100EUS
Regular price Enquire with us
Enquire with us /
  • Rated for use in Malaysia
  • Local Service Center
  • Delivery options available

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market.

AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately.

For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

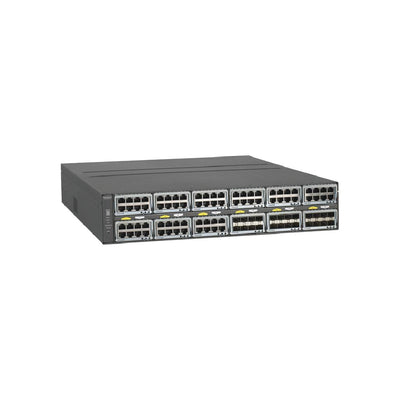

    NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
    NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
    NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
    Enquire with us Enquire with us

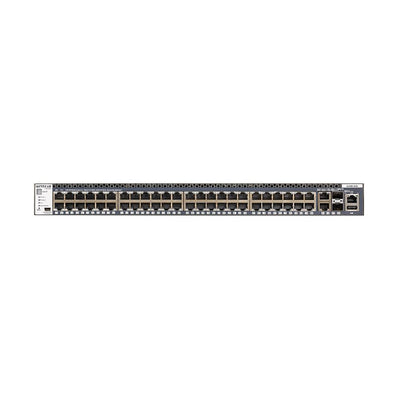

    NETGEAR 48-Port Fully Managed Switch M4300-52G, 48x1G, 2x10GBASE-T, 2xSFP+, Stackable, ProSAFE Lifetime Protection (GSM4352S)
    NETGEAR 48-Port Fully Managed Switch M4300-52G, 48x1G, 2x10GBASE-T, 2xSFP+, Stackable, ProSAFE Lifetime Protection (GSM4352S)
    NETGEAR 48-Port Fully Managed Switch M4300-52G, 48x1G, 2x10GBASE-T, 2xSFP+, Stackable (GSM4352S)
    Enquire with us Enquire with us
    NETGEAR AV Line M4250-10G2F-PoE+ (GSM4212P) 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch
    NETGEAR AV Line M4250-10G2F-PoE+ (GSM4212P) 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switchc
    NETGEAR AV Line M4250-10G2F-PoE+ (GSM4212P) 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch
    Enquire with us Enquire with us

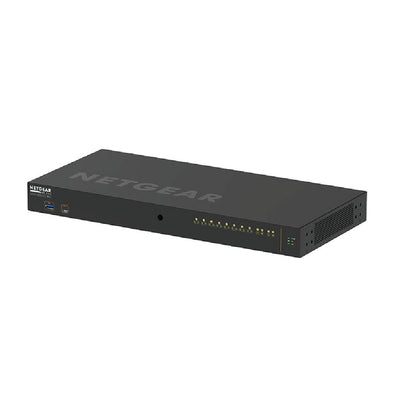

    NETGEAR AV Line M4250-10G2XF-PoE+ (GSM4212PX) 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-10G2XF-PoE+ (GSM4212PX) 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-10G2XF-PoE+ (GSM4212PX) 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch
    Enquire with us Enquire with us

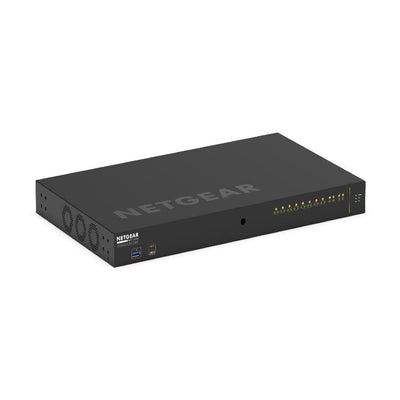

    NETGEAR AV Line M4250-10G2XF-PoE++ (GSM4212UX) 8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-10G2XF-PoE++ (GSM4212UX) 8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-10G2XF-PoE++ (GSM4212UX) 8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
    Enquire with us Enquire with us

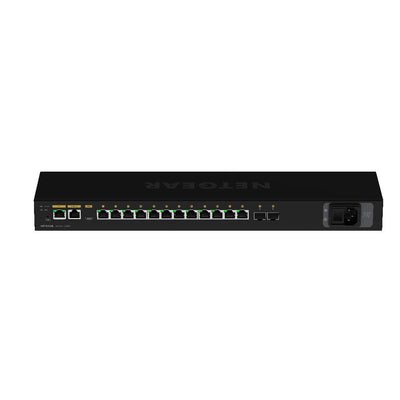

    NETGEAR AV Line M4250-12M2XF (MSM4214X) 12x2.5G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-12M2XF (MSM4214X) 12x2.5G and 2xSFP+ Managed Switch
    NETGEAR AV Line M4250-12M2XF (MSM4214X) 12x2.5G and 2xSFP+ Managed Switch
    Enquire with us Enquire with us
    Easier configuration with new AV GUI

    Easier configuration with new AV GUI

    The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed

    Use in noise-sensitive environments

    Use in noise-sensitive environments

    Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches

    Get up and running fast with little engineering time required

    Get up and running fast with little engineering time required

    Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

    Multiple mounting options provide ultimate flexibility

    Multiple mounting options provide ultimate flexibility

    Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

    Features

    PRE-CONFIGURED FOR OUT -OF-THE-BOX USE

    NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

    DEDICATED AV WEB-BASED GUI INTERFACES

    Unique interface designed for the AV professional with color-coded, port-based profiles

    PROFILES FOR COMMON AUDIO PROTOCOLS

    Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

    VIDEO PROFILES BUILT-IN

    Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

    Specifications

    Technical Specs

    Primary Port Speed : 1 Gigabit

    Number of Ports :  16 (1G/10G Fiber SFP+)

    PoE Ports / Budget : None

    IGMP Support : Enhanced (NETGEAR IGMP Plus™)

    Jumbo Frame Support : Yes, up to 12kb

    Acoustics : Fanless or 56.7dB@25ºC

    Power Consumption :System Full Load: 47.84W/163.33Btu/hr; Standby without any port connection: 19.269W/65.78Btu/hr

    AVB Support : Yes. Electronic license required, activation key sent via email (AVB4216F-10000S)

    Package Content

    M4250-16XF (XSM4216F)

    Power cord(s)

    Console USB Type-C and RJ45-DB9 cables

    Rack-mounting standard brackets

    Longer brackets for recessed mounting

    Rubber footpads for tabletop installation

    Installation guide

    Physical Specifications

    Dimensions (WxDxH) : 440 x 200 x 43.2mm

    Weight : 2.80Kg (6.17lb)

    Warranty

    NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty
