QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure

SKU: TL-D1600S
 QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure
 QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure
 QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure
 QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure
 QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure

QNAP TL-D1600S 16 Bay High-performance desktop SATA 6Gbps JBOD storage enclosure

SKU: TL-D1600S
Regular price Enquire with us
Enquire with us /
  • Rated for use in Malaysia
  • Local Service Center
  • Delivery options available

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

1. QNAP recommends following the standard procedure for connecting or disconnecting the TL-D1600S. For more information, please see the TL-D1600S user manual.
2. The TL-D1600S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D1600S.
3. The TL-D1600S only supports QNAP NAS running on QTS 4.5.4 (or above) or QuTS hero h4.5.4 operating system.

More from Network Storage
QNAP TS-h3077AFU-R5-32G 30 Bay 2U Rackmount ZFS Based All Flash NAS with  AMD Ryzen™ 7000 series processor
QNAP TS-h3077AFU-R5-32G 30 Bay 2U Rackmount ZFS Based All Flash NAS with  AMD Ryzen™ 7000 series processor
QNAP TS-h3077AFU-R5-32G 30 Bay 2U Rackmount ZFS Based All Flash NAS with AMD Ryzen™ 7000 series processor
Enquire with us Enquire with us
QNAP TL-R2400PES-RP 24 Bay PCIe Interface JBOD Storage Enclosure
QNAP TL-R2400PES-RP 24 Bay PCIe Interface JBOD Storage Enclosure
QNAP TL-R2400PES-RP 24 Bay PCIe Interface JBOD Storage Enclosure
Enquire with us Enquire with us
QNAP TS-h1677AXU-RP-R7-32G 16 Bay 3U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1677AXU-RP-R7-32G 16 Bay 3U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1677AXU-RP-R7-32G 16 Bay 3U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
Enquire with us Enquire with us
QNAP TS-h1277AXU-RP-R7-32G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1277AXU-RP-R7-32G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1277AXU-RP-R7-32G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
Enquire with us Enquire with us
QNAP TS-h1277AXU-RP-R5-16G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1277AXU-RP-R5-16G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
QNAP TS-h1277AXU-RP-R5-16G 12 Bay 2U Rackmount NAS powered by AMD Ryzen™ 7000 Series processors
Enquire with us Enquire with us
QNAP TBS-h574TX-i5-16G 5 Bay Thunderbolt™ 4 all-flash NASbook
QNAP TBS-h574TX-i5-16G 5 Bay Thunderbolt™ 4 all-flash NASbook
QNAP TBS-h574TX-i5-16G 5 Bay Thunderbolt™ 4 all-flash NASbook
Enquire with us Enquire with us

Features

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

 1. QNAP recommends following the standard procedure for connecting or disconnecting the TL-D1600S. For more information, please see the TL-D1600S user manual.
2. The TL-D1600S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D1600S.
3. The TL-D1600S only supports QNAP NAS running on QTS 4.5.4 (or above) or QuTS hero h4.5.4 operating system.

1

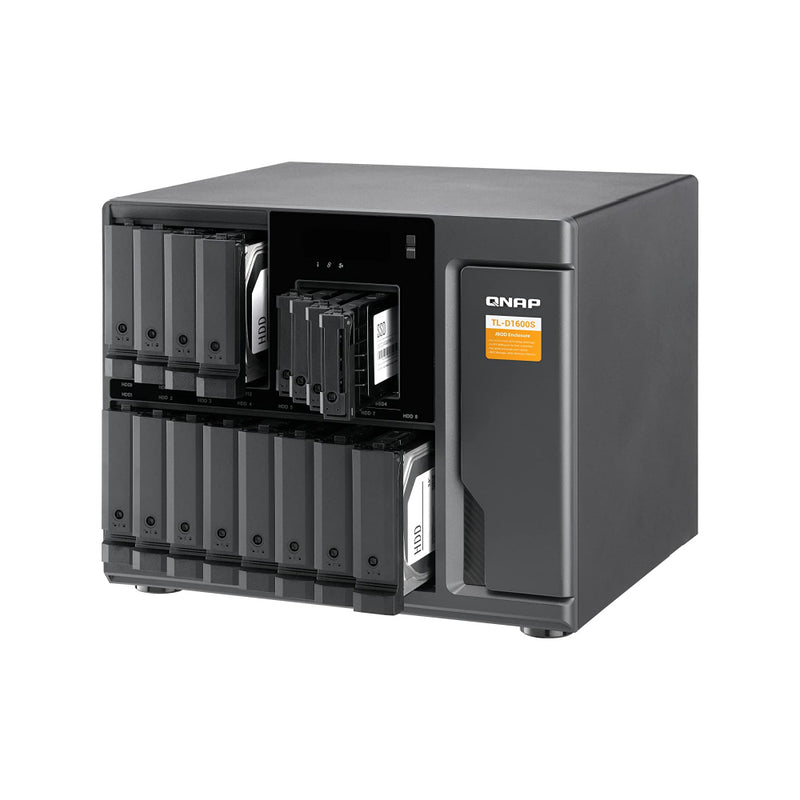

Lockable hard drive trays prevent accidental drive removal.

2

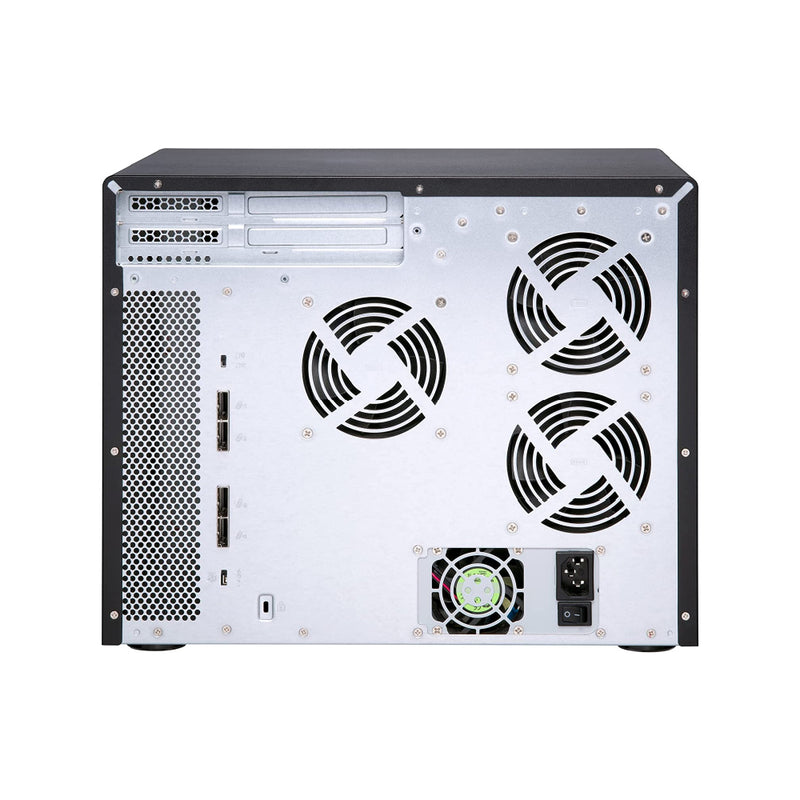

SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.

3

Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.

High-performing TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Flexible Storage Configuration and Management

The TL-D1600S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.

Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D1600S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D1600S, you can easily expand storage capacity.

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows® and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

What you need to know

You can connect your TL-D1600S to Windows® and Ubuntu® computers through SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage RAID configuration.

1. QXP series PCIe cards do not support Mac Pro.
2. If there are any unexpected boot failures during QXP PCIe cards installation on the host, please check with the host manufacturing company for any new BIOS updates. Alternatively, you can try disabling the boot from the PCIe slot function or disable the external graphics card option.

Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D800S on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

Flexibly Expand Connectivity with QXP PCIe Cards

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable , for easy and flexible storage expansion.

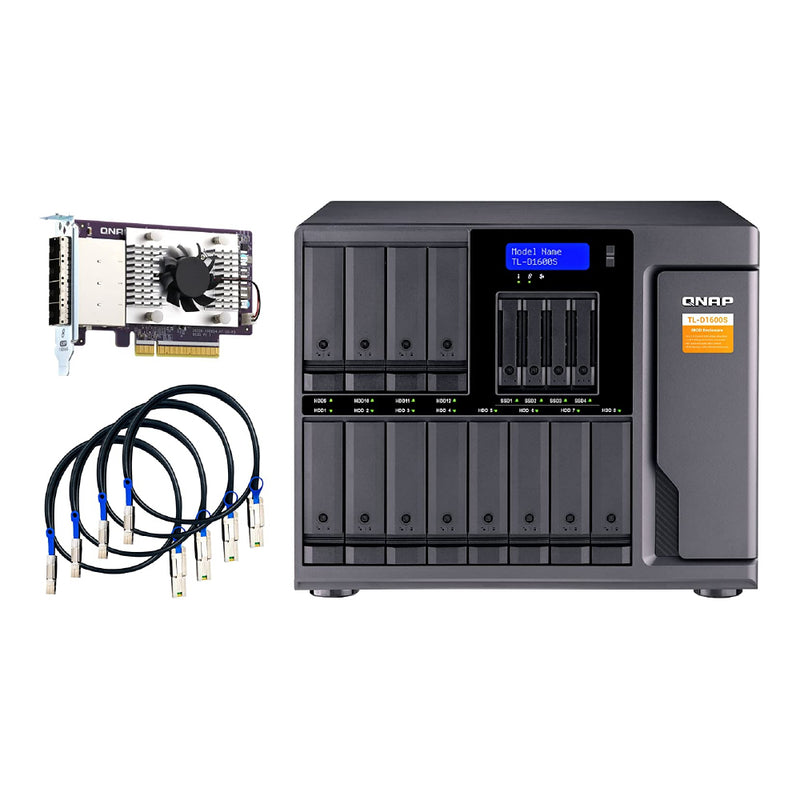

1. Starting in February 2022, the package includes QXP-1600eS-A1164 expansion card (previously QXP-1600eS) and four 1M SFF-8088 to SFF-8644 cables.
2. A SATA JBOD storage enclosure can only connect to one NAS. Users can only use QNAP JBOD Manager to view statuses of devices and disks installed with QNAP expansion cards and JBODs. Users can only create single storage expansions when the QXP PCIe card is not connected to a TL SATA JBOD enclosure.
3. TL SATA JBOD storage enclosure can install different QXP PCIe cards. For example, one NAS can be matched with multiple QXP PCIe cards to connect to TL SATA JBOD storage enclosure or users can use one QXP-800eS to expand two TL-D400S (there are no quantity limits except for restrictions mentioned in the previous note).
4. The TL SATA JBOD and QXP SATA expansion card support at most 1 meter (3.28 feet) long cable.
5. The QXP-1600eS PCIe SATA expansion card included with the TL-D1600S and TL-R1200S-RP JBOD is incompatible with 1U 4-bay NAS with PCIe slots and the following desktop models. For more information, and to view a full list of compatible NAS models, visit the Storage Expansion Compatibility and Compatibility List.
6. Users of the TVS-871U-RP, TVS-1271U-RP, and x80 series NAS must update their BIOS to the minimum BIOS version. If not, unexpected boot failures might occur.

SAS/SATA 6Gb/s external cables

1-meter (3.28 ft.) SFF-8644 to SFF-8088 cable

• For QXP-1600eS-A1164, QXP-1600eS PCIe SATA card • Support SATA 6Gb/s and SAS 6Gb/s • Compatible with third-party SAS 6Gb/s JBOD products

 Order number: CAB-SAS10M-8644-8088

1-meter (3.28 ft.) SFF-8088 to SFF-8088 cable

• For QXP-400eS-A1164 and QXP-800eS-A1164 PCIe SATA cards • Support SATA 6Gb/s and SAS 6Gb/s • Compatible with third-party SAS 6Gb/s JBOD products

 *Order number: CAB-SAS10M-8088

Versatile usage scenarios to meet storage expansion needs

The TL-D1600S meets many storage expansion requirements for the home and office. Below is a list of potential application scenarios:

Scenario 1: Expand your NAS capacity

The TL-D1600S provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-D1600S to their NAS and using Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-D1600S supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

FunctionQNAP TL-D1600SQNAP TR-004Other external RAID/ JBOD device
Connection TypeSATAUSB 3.2 Gen 1By device
Drive bays164By device
Supported systemsQNAP QTS/QuTS hero, Windows, Linux etc...QNAP QTS/QuTS hero, Windows, Linux etc...QNAP QTS/QuTS hero, Windows, Linux etc...
Disk health monitoringSupported (QNAP QTS/QuTS hero, Windows, inux)Supported (QNAP QTS/QuTS hero, Windows)Not Supported
Hardware RAID protectionNot SupportedSupported (QNAP QTS/QuTS hero, Windows)Varies by device
Create Storage PoolSupported (QNAP QTS)Supported (QNAP QTS)Not Supported
RAID migration, capacity expansionSupported (QNAP QTS/QuTS hero, Windows, Linux)Not SupportedVaries by device

▲   Note:
1. The TL-D1600S does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and the following NAS models: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U.

2. Drives can only be migrated from one TL USB JBOD to another TL USB JBOD. Files and data stored on drives migrated to or from other JBOD devices will not be recognized.

Scenario 2: External storage for your NAS

You can use the TL-D1600S to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-D1600S and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

Mode 1: Expand NAS capacity with storage pool mode

You can use Storage & Snapshots Manager in QTS or QuTS hero to configure the RAID storage pool for your TL-D1600S and expand NAS capacity.

 Note: The TL-D1600S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D1600S.

Mode 2: Expand your NAS with external storage mode

You can treat each disk on your TL-D1600S as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

 Note: The TL-D1600S supports multiple disk formats, including NTFS (for Windows), HFS+ (for Mac), EXT4 (for Ubuntu or QNAP NAS), exFAT (for Windows, Mac, Ubuntu, and QNAP NAS) etc.

Scenario 3: Expand the storage space of your Windows® and Ubuntu® computers

You can use your TL-D1600S to expand the storage space of Windows® and Ubuntu® computers. You can set up the RAID configuration of your TL-D1600S to further secure data protection. Moreover, you can also use the single disk mode and format with exFAT file system for more convenient access and sharing of files between Windows® and Ubuntu® computers.

Mode 1: RAID configuration mode

You can obtain data protection by building a software RAID 0, RAID 1, and RAID 5 volume with native utility in your Windows® and Ubuntu® computers, and use the QNAP JBOD Manager to monitor the TL-D1600S status information.

Mode 2: Single disk mode

You can format hard drives with the exFAT file system while accessing and sharing files between Windows® and Ubuntu® computers.

 Note: Your QNAP NAS can also use the exFAT file system by buying the exFAT driver license from QNAP Software Store.

Scenario 4: Third-party hardware RAID card for advanced protection

You can install third-party hardware RAID cards on your TL-D1600S for advanced hardware RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 protection and use Windows® utility software to manage your TL-D1600S.

FunctionMRAIDMegaRAID Storage ManagerStorage ManagerRAID Management
BrandArecaBroadcomMicrosemiHighPoint
ModelARC-1883xMegaRAID SAS 9286-8e (6 Gb/s)
MegaRAID SAS 9286-8e (12 Gb/s)
SmartRAID 3154-8eRocketRAID 3742A

 ▲  Note: The third-party hardware RAID card cannot be used simultaneously with QNAP JBOD manager and QXP series PCIe cards.

TL-D1600S Offers Better Performance Than Other USB and eSATA JBOD Solutions

The TL-D1600S features SFF-8088 (or SFF-8644) connectivity and multiple SATA 6Gb/s bays. This provides better sequential read performance and faster data transfer speeds than existing USB and eSATA expansion enclosures, while also being a more economical option compared to a QNAP REXP SAS enclosure.

Sequential Throughput

Windows RAID 0

Read 5111MB/s
100%
Write 3760MB/s
98%

Windows RAID 5

Read 4947MB/s
100%
Write 1801MB/s
60%

Ubuntu RAID 0

Read 6072MB/s
100%
Write 6168MB/s
95%

Ubuntu RAID 5

Read 6033MB/s
100%
Write 1744MB/s
60%

QTS RAID 0

Read 6650.4MB/s
100%
Write 6283.1MB/s
85%

QTS RAID 5

Read 6621.6MB/s
100%
Write 2657.9MB/s
70%

Tested in QNAP Labs. Figures may vary by environment.

 Test environment:
JBOD model: TL-D1600S

 Volume type: Samsung SSD 860 EVO 1TB
NAS: TS-1683XU, Intel Xeon E-2124 4.3GHz, 8GB RAM, QNAP QXP-1600eS-A1164, QTS 5.0.0
Client PC:
Windows: Intel Core i7-4790 3.6GHz, 16GB RAM, QNAP QXP-1600eS-A1164, Windows Server 2016
Ubuntu: Intel Core i7-4790 3.6GHz, 16GB RAM, QNAP QXP-1600eS-A1164, Ubuntu 18.04 Desktop

Extend hardware warranty up to 5 years

The TL-D1600S is backed by a 2-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.
