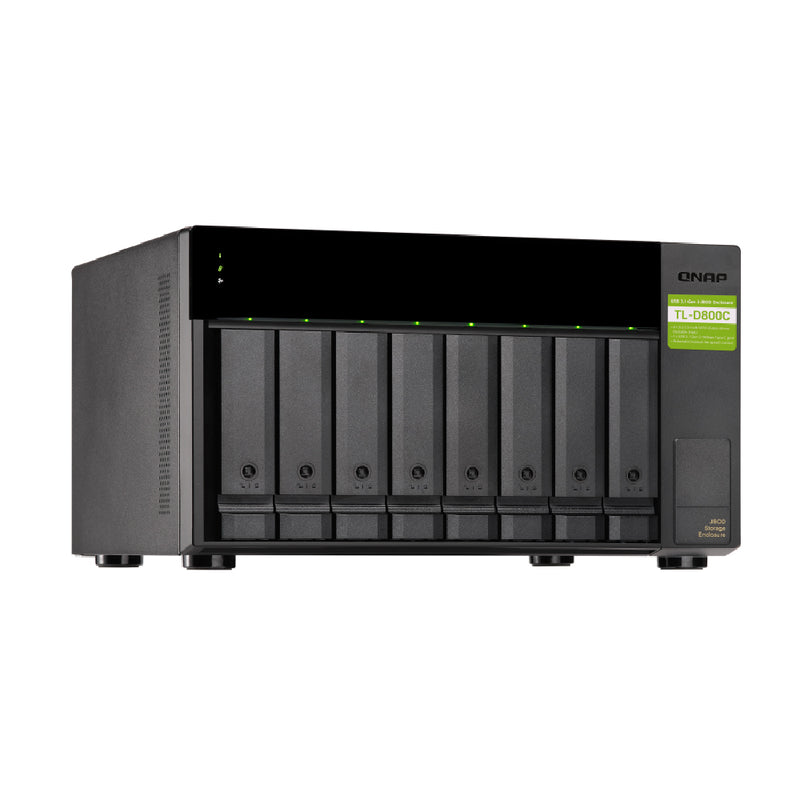

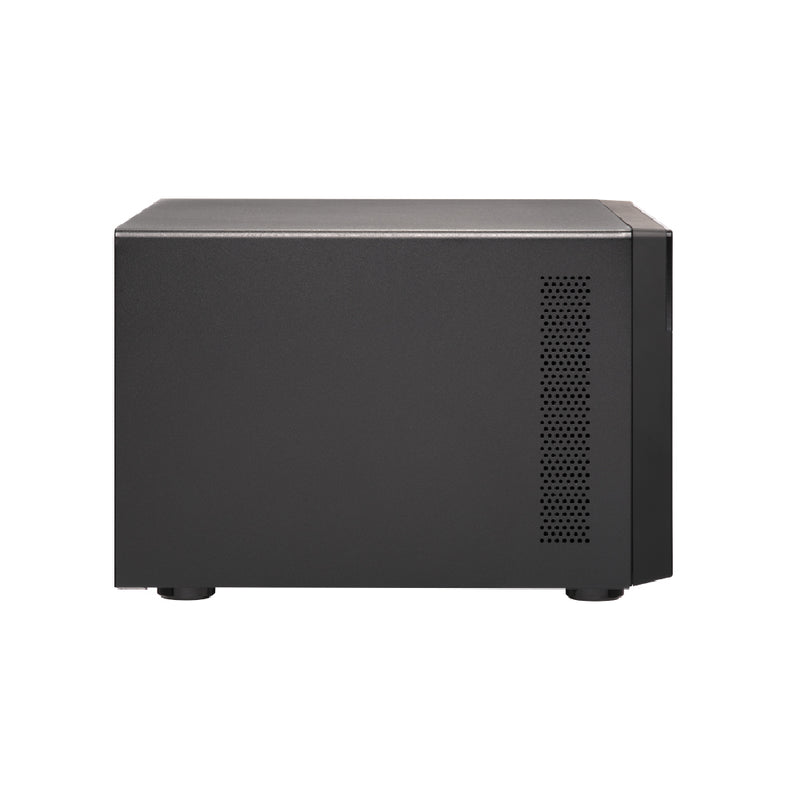

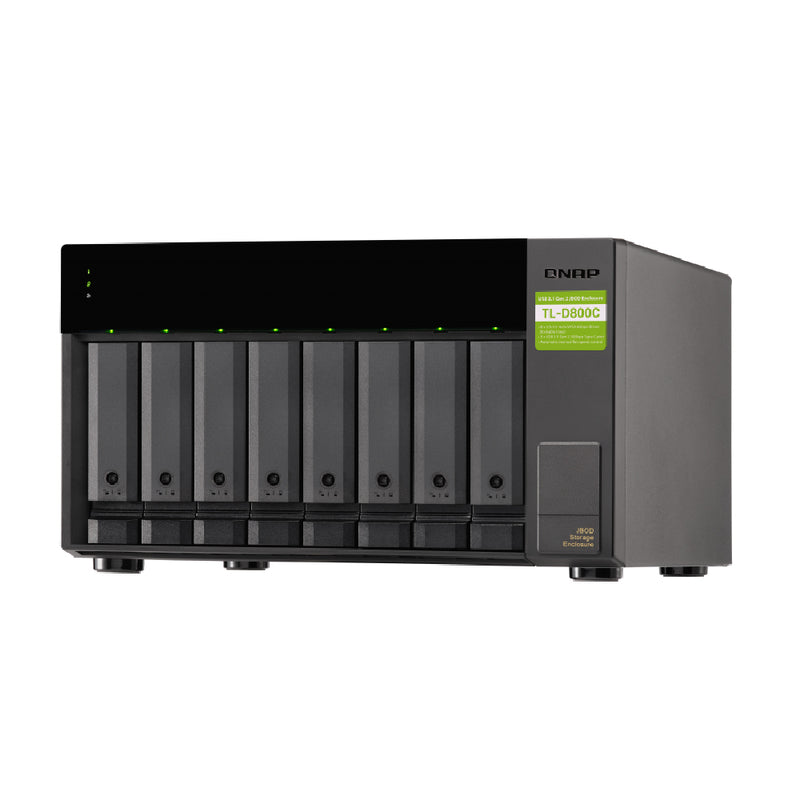

QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

SKU: TL-D800C
QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure
QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure
QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure
QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure
QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

QNAP TL-D800C 8 Bay USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

SKU: TL-D800C
Regular price $0.00
/
  • Rated for use in Malaysia
  • Local Service Center
  • Delivery options available

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

Note:
1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port.
2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual.
3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.
4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system.
5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).

More from Network Storage
QNAP TBS-464 Quad-core 4-Bay M.2 NVMe SSD NASbook
QNAP TBS-464 Quad-core 4-Bay M.2 NVMe SSD NASbook
QNAP TBS-464 Quad-core 4-Bay M.2 NVMe SSD NASbook
$0.00
QNAP TS-i410X Fanless 10GbE industrial NAS
QNAP TS-i410X Fanless 10GbE industrial NAS
QNAP TS-i410X Fanless 10GbE industrial NAS
$0.00
QNAP TS-410E Fanless 2.5GbE Professional NAS
QNAP TS-410E Fanless 2.5GbE Professional NAS
QNAP TS-410E Fanless 2.5GbE Professional NAS
$0.00
QNAP TS-453BT3 Thunderbolt 3 + 10GbE NAS
QNAP TS-453BT3 Thunderbolt 3 + 10GbE NAS
QNAP TS-453BT3 Thunderbolt 3 + 10GbE NAS
$0.00

Features

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

 Note: 1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port. 2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual. 3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C. 4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system. 5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).

1

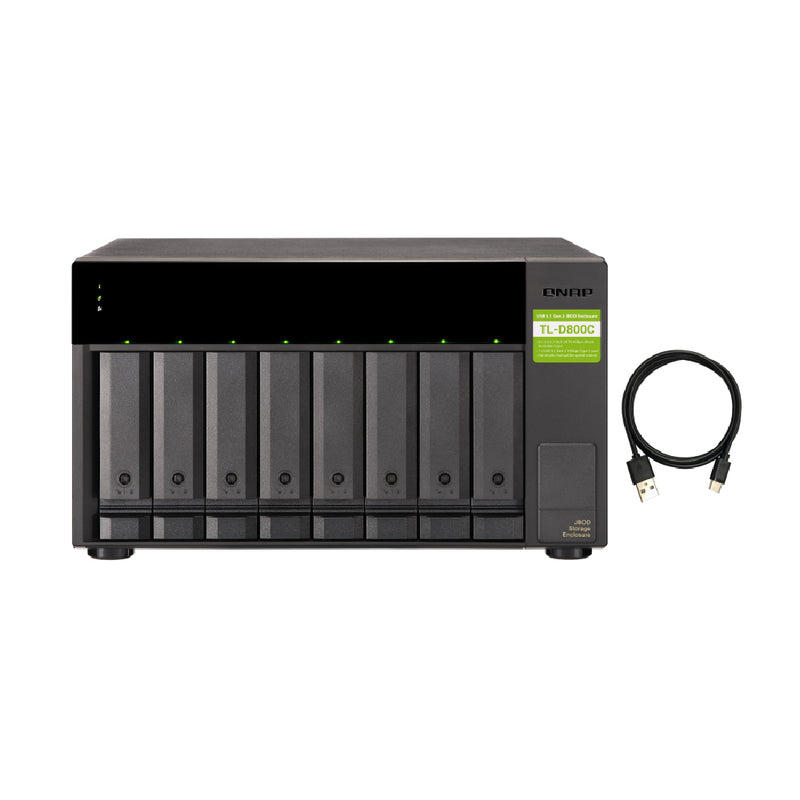

USB 3.2 Gen2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables. * The package includes one USB 3.2 Gen2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.

2

Lockable hard drive trays prevent accidental drive removal.

3

Supports SATA 6Gb/s drives for reliable read/write performance.

High-speed USB transfer

The TL-D800C features high-speed USB 3.2 Gen2 Type-C connectivity and built-in USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. The TL-D800C not only provides you higher file transfer performance than USB 3.2 Gen1 (USB 3.2 Gen 1) but offers a more cost-effective option than other storage enclosures on the market.

 Note: To achieve UASP, please make sure that your computers and hosts support it.

Sequential Throughput
QTS RAID 0

Read 1028MB/s
91%
Write 949MB/s
85%

QTS RAID 5

Read 1028MB/s
100%
Write 738MB/s
70%

Tested in QNAP Labs. Figures may vary by environment.

 Test environment:
TL-D800C:
Volume type: 8 x Samsung 860 Pro 512GB SSD
NAS: TS-983XU
QTS 4.4.2; Intel® Xeon® E-2124 3.3GHz CPU; 4GB RAM; QNAP USB 3.2 Gen2 PCIe adapter

Flexible storage configuration and management

The TL-D800C provides software-controlled configurations for greater management flexibility. Users can use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-D800C as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.

JBOD migration speeds up remote file transfers

Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-D800C supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-D800C to another place and connect it with the NAS to experience the device’s simple plug and play feature and fast data migration.

Use TL-D800C as a high-capacity disk drive reader by setting up single disk mode

You can treat each disk in your TL-D800C as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into theTL-D800C empty drive slot. After that, you can install the disk that reached full data capacity into the TL-D800C and connect it with a NAS for direct file access.

Versatile usage scenarios to meet storage expansion needs

The TL-D800C meets many storage expansion requirements for the home and office. Below is a list of potential usage scenarios:

Scenario 1: Expand your NAS capacity

The TL-D800C provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-D800C to their NAS and using the Storage & Snapshots Manager in QTS or QTS hero, users can easily configure and manage their storage expansion. The TL-D800C supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

FunctionQNAP TL-R1220Sep-RP, TL-R1620Se-RPQNAP TL-D400S, TL-D800S, TL-D1600S, TL-R400S, TL-R1200S-RPQNAP TL-D800CQNAP TR-004, TR-002, TR-004UOther external RAID/ JBOD device
Connection TypePCIe to SAS 12Gb/sPCIe to SATAUSB 3.2 Gen 2USB 3.2 Gen2 & USB 3.2 Gen1Varies by device
Drive bays12, 164, 8, 12, 168, 124Varies by device
Supported systemsQNAP QTS/QTS hero, Windows, Linux etc...QNAP QTS/QTS hero, Windows, Linux etc...QNAP QTS/QTS hero, Windows, macOS, Linux etc...QNAP QTS/QTS hero, Windows, macOS, etc...QNAP QTS/QTS hero, Windows, macOS, Linux etc...
S.M.A.R.T Disk Health MonitoringSupported (QNAP QTS/QTS hero, Windows, Linux)Supported (QNAP QTS/QTS hero, Windows, Linux)Supported (QNAP QTS/QTS hero, Windows, macOS, Linux)Supported (QNAP QTS/QTS hero, Windows, macOS)Not Supported
Multiple RAIDSupported by HostSupported by HostSupported by HostTR-002: Supported (RAID 0/1) TR-004/TR-004U: Supported( RAID 0/1/5/10)Varies by device
Create Storage PoolSupported (QNAP QTS/QuTS hero)Supported (QNAP QTS/QTS hero Windows, Linux)Supported (QNAP QTS/QTS hero, Windows, macOS, Linux)Supported (QNAP QTS/QTS hero, Windows, macOS)Not Supported
RAID migration, capacity expansionSupported (QNAP QTS/QTS hero)Supported (QNAP QTS/QTS hero)Supported (QNAP QTS/QTS hero)Not SupportedVaries by device

▲   Note:
1. The TL-D800C does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and the following NAS models: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U.

2. Drives can only be migrated from one TL USB JBOD to another TL USB JBOD. Files and data stored on drives migrated to or from other JBOD devices will not be recognized.

Scenario 2: External storage for your NAS

You can use the TL-D800C to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QTS hero to set up and manage your TL-D800C and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

Mode 1: Expand NAS capacity with storage pool mode

You can use Storage & Snapshots Manager in QTS or QTS hero to configure the RAID storage pool for your TL-D800C and expand NAS capacity.

Note: The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.

Mode 2: Expand your NAS with external storage mode

You can treat each disk on your TL-D800C as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

You can treat each disk on your TL-D800C as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

Extend hardware warranty X multi-hour burn-in

The TL-D800C undergoes rigorous multi-hour burn-in to ensures your TL-D800C is immediately ready for demanding use, and it is backed by a 2-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.
