Features

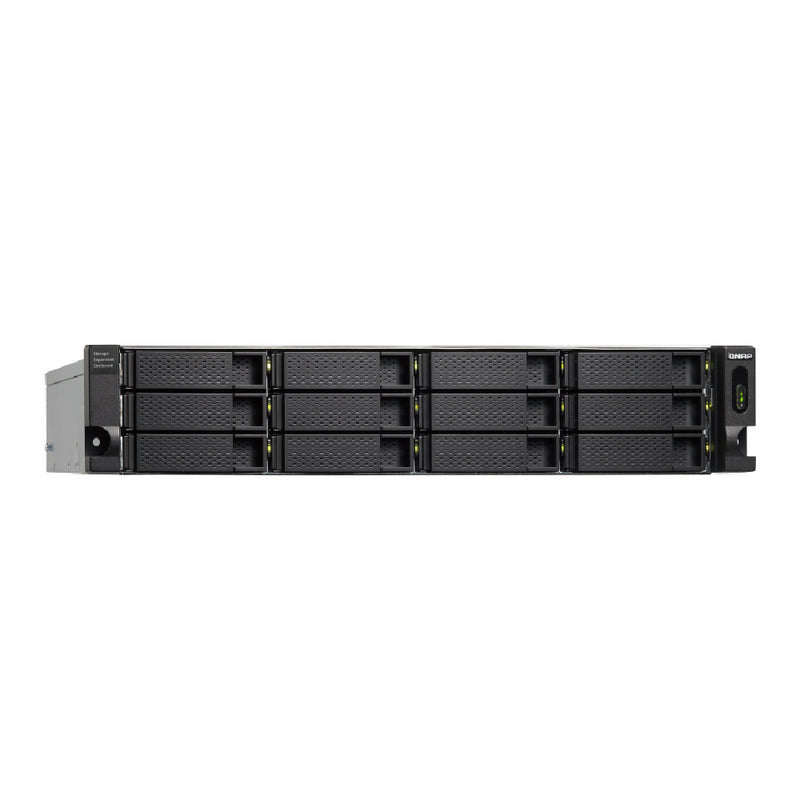

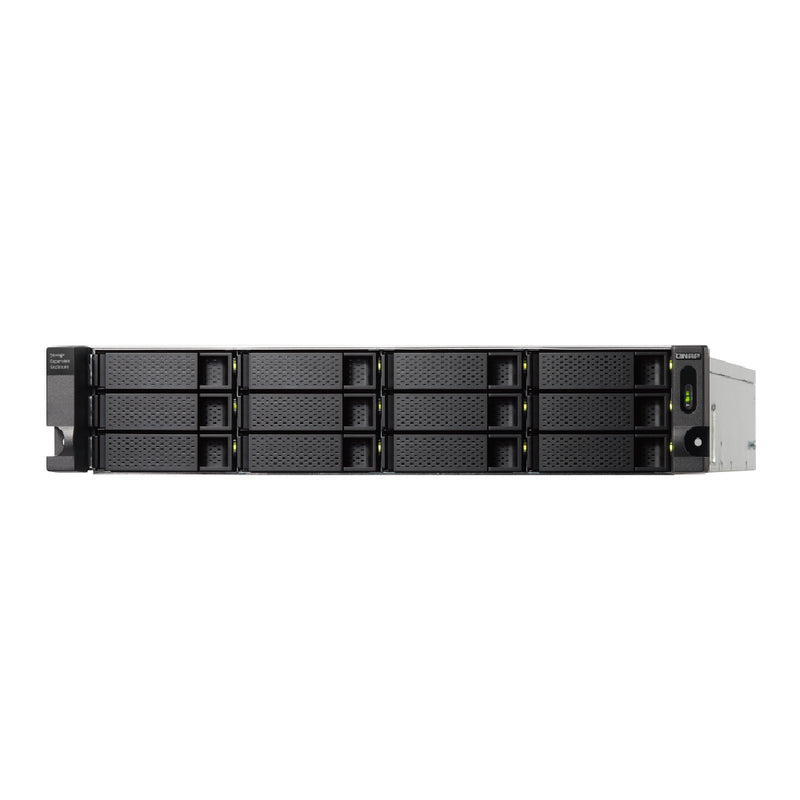

The rackmount TL-R1200C-RP JBOD storage enclosure allows you to back up and expand your QNAP NAS, computers (supports Windows and Mac), and servers. The TL-R1200C-RP features twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

 Notes: 1. TL-R1200C-RP only supports devices with USB 3.2 Gen 1 (or above) port. 2. QNAP recommends following the standard procedure to connect or disconnect the TL-R1200C-RP. For more information, please see the TL-R1200C-RP user manual. 3. The TL-R1200C-RP can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-R1200C-RP. 4. The TL-R1200C-RP only supports QNAP NAS running on QTS 4.4.2 (or above) or QuTS hero operating system. 5. The TL-R1200C-RP doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card) 6. Users can purchase the optional RAIL-B02 rail kit to deploy the TL-R1200C-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.

1

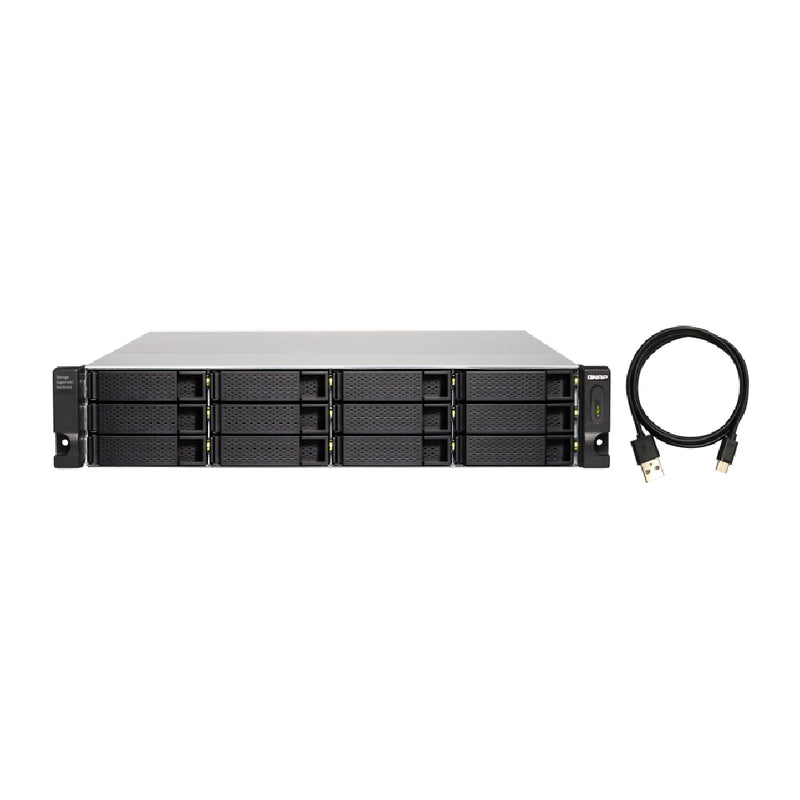

USB 3.2 Gen 2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables. *The package includes one USB 3.2 Gen 2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.

2

Provides high capacity and affordability, making it an excellent backup solution for QNAP NAS.

3

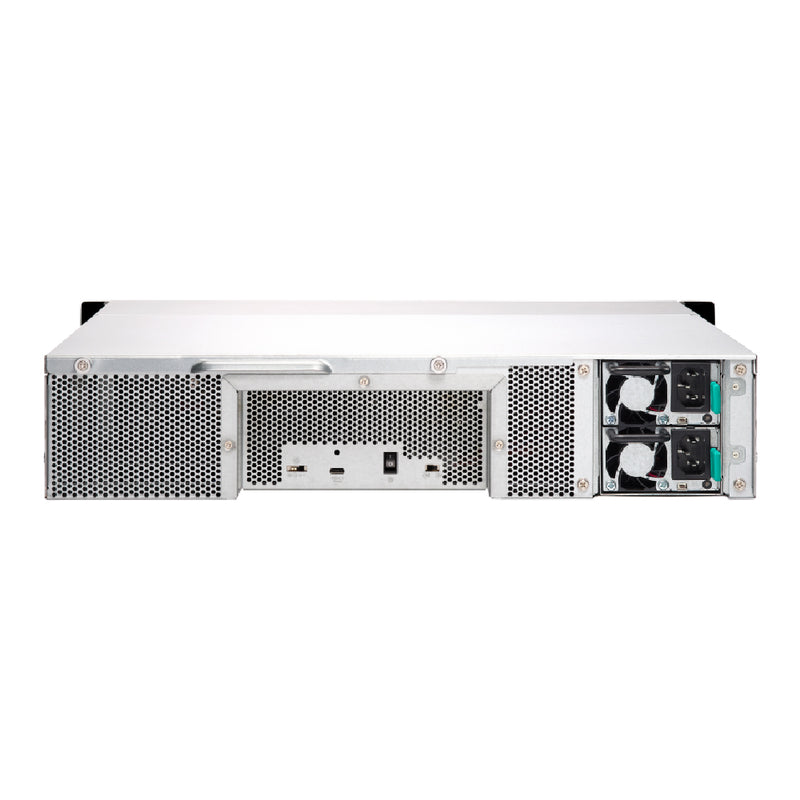

250W redundant power supply to ensure maximum system uptime.

Flexible storage configuration and management

The TL-R1200C-RP provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the QTS / QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on their computer.

Use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-R1200C-RP as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-R1200C-RP, you can easily expand storage capacity.

The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200C-RP on Windows®, Mac®, and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

What you need to know

You can connect your TL-R1200C-RP to Windows®, Mac®, and Ubuntu® computers through the USB interface and use built-in utility to manage the RAID configuration.

Intelligently monitor JBOD enclosure status on PC and servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200C-RP on Windows® and Mac® computers. You can quickly obtain and view information about the JBOD status, health, fan rotation speed, and check for firmware version updates. All device events are recorded, and QNAP JBOD Manager will automatically send system alert notifications to your desktop. supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.

JBOD migration speeds up remote file transfers

Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-R1200C-RP supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-R1200C-RP to another place and connect it with the computer or NAS to experience the device’s simple plug and play feature and fast data migration.

Use TL-R1200C-RP as a high-capacity disk drive reader by setting up single disk mode

You can treat each disk in your TL-R1200C-RP as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into the TL-R1200C-RP empty drive slot. After that, you can install the disk that reached full data capacity into the TL-R1200C-RP and connect it with a computer or NAS for direct file access.

Versatile usage scenarios to meet storage expansion needs

The TL-R1200C-RP meets many storage expansion requirements for the home and office. Below is a list of potential usage scenarios:

Scenario 1: Expand your NAS capacity

The TL-R1200C-RP provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-R1200C-RP to their NAS and using the Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-R1200C-RP supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

▲   Note:
1. The TL-R1200C-RP does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and the following NAS models: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U.

2. Drives can only be migrated from one TL USB JBOD to another TL USB JBOD. Files and data stored on drives migrated to or from other JBOD devices will not be recognized.

Scenario 2: External storage for your NAS

You can use the TL-R1200C-RP to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-R1200C-RP and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

Scenario 3: Expand the storage space of your Windows®, Mac®, and Ubuntu® computer

You can use your TL-R1200C-RP with Windows®, Mac®, and Ubuntu® computers to expand more storage space. You can set up the RAID configuration of your TL-R1200C-RP to further secure data protection. Moreover, you can also use the single disk mode and format with the exFAT file system for more convenient access and sharing of files between Windows® and Ubuntu® computers.

High-speed USB transfer

The TL-R1200C-RP features high-speed USB 3.2 Gen 2 Type-C connectivity and built-in USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. The TL-R1200C-RP not only provides you higher file transfer performance than traditional USB interfaces but offers a more cost-effective option than REXP SAS JBOD.

Windows RAID 0

Windows RAID 5

MacOS RAID 0

Ubuntu RAID 0

Ubuntu RAID 5

QTS RAID 0

QTS RAID 5

Tested in QNAP Labs. Figures may vary by environment.

 Test environment:
Volume type: 12 x Samsung 860 Pro 512GB SSD
NAS: TS-983XU, QTS 4.4.2, Intel® Xeon® E-2124 3.3GHz CPU; 4GB RAM; QNAP USB 3.2 Gen 2 PCIe adapter

 Client PC:
- Windows: Intel Core i5-8400T 1.7GHz, 16GB RAM, QNAP USB 3.2 Gen 2 PCIe adapter, Windows 10 Pro
- Mac: Intel Core i7-6920HQ 2.9GHz, 16GB RAM, macOS 10.14.4
- Ubuntu: Intel Core i5-8400T 1.7GHz, 16GB RAM, QNAP USB 3.2 Gen 2 PCIe adapter, Ubuntu 18.04 Desktop

Drive Bay

 12 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Audio Alert On/Off Switch

✓

Form Factor

2U Rackmount

Host Interface

1 x USB 3.2 Gen 2 Type-C

LED Indicators

 HDD 1-12, Status, Link, Fan error

Buttons

Power switch

Dimensions (HxWxD)

88.6 × 482 × 562.5 mm

Weight (Net)

 11.03 kg

Weight (Gross)

14.29 kg

Max. number of HDDs/SSDs supported

12

Hard Drive Type

 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

 -20 - 70°C (-4°F - 158°F)

Relative Humidity

 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W(x2) PSU, 100 - 240V

Power Consumption: Operating Mode, Typical

 82.26 W
Tested with drives fully populated.

Fan Mode Switch

✓  (Auto, high, medium, low)

Fan

2 x 120mm, 12VDC

System Warning

 Buzzer

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.

Supported O.S.

QNAP QTS / QuTS hero, Windows, Mac, Linux

QTS / QuTS hero

QTS 4.4.2 / QuTS hero h4.5.0 (or newer)

QTS QTS drive monitoring and storage pool support

Yes

QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM

Yes

RAID migrated & expanded

Yes

Qtier on Enclosure

 Yes

Utility for other platform

QNAP JBOD Manager

Mac

  MacOS 10.13 or newer

Linux

Ubuntu 18.04

Device Info (Health/Bus type/PSU/Temperature/FAN)

 Yes

Device Temperature Warning & automatic FAN control

 Yes

Event Log (support Export)

 Yes

Enclosure located via LED & beep

 Yes

LCM + enclosure customizable naming

 Yes

SATA wiring determination

 Yes

Note:
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.
