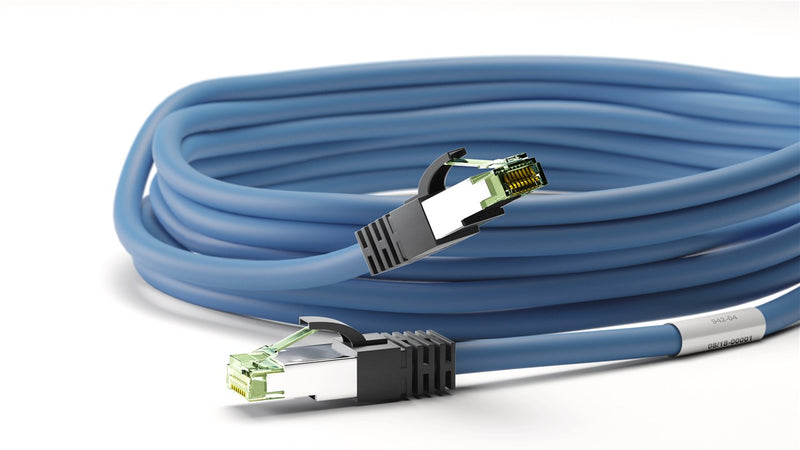

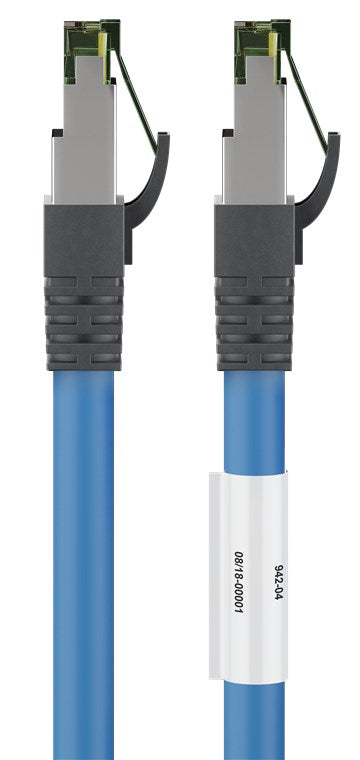

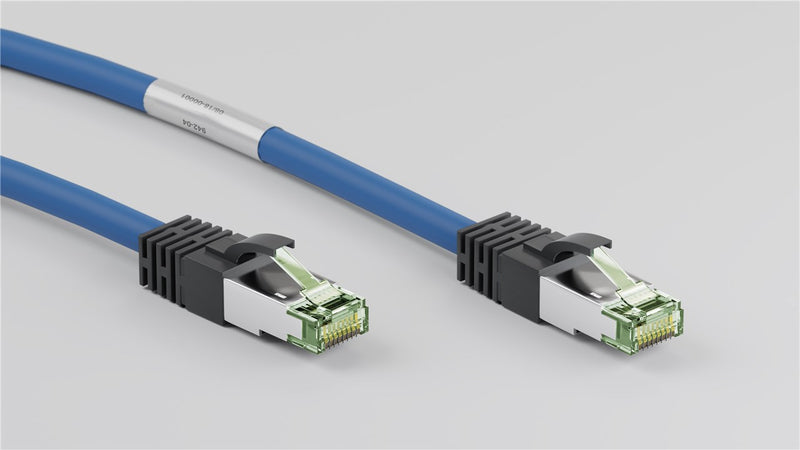

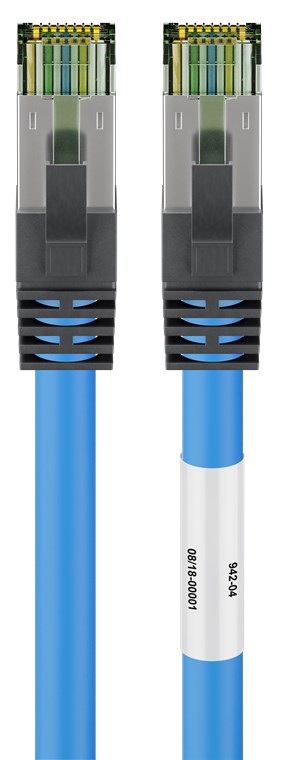

GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Blue

SKU: 45658
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue

GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Blue

SKU: 45658
Cable Length
Regular price Enquire with us
Enquire with us /
  • Rated for use in Malaysia
  • Local Service Center
  • Delivery options available
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
More from Cable 8.1
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Grey
Enquire with us Enquire with us
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Blue
Enquire with us Enquire with us
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Black
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Black
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Black
Enquire with us Enquire with us
Artboard 1.jpg__PID:755ba68b-fa27-4f73-99c6-167f7f9146b9Artboard 3.jpg__PID:fbf577da-1572-4819-91a8-499631cc6cc8Artboard 3.jpg__PID:11c51986-e09f-4586-9a41-8c01adcdd764Artboard 4.jpg__PID:63ea8869-8898-4b1a-a0bd-4424a15fef2bArtboard 5.jpg__PID:560aa10d-2734-4756-b153-2c709ac1c5ceArtboard 6.jpg__PID:37a6a025-1795-4c00-bc30-a27eb3aa8174Artboard 7.jpg__PID:699a3d73-056b-42df-83ff-36ee4cfc35d4Artboard 8.jpg__PID:df6ad14a-b2a2-405f-b9e9-a304deb8b69fArtboard 9.jpg__PID:90c64c40-9dea-42a4-9a37-8e5976a9933cArtboard 12.jpg__PID:a2bffe35-1a72-493d-b77f-578789a596d8Artboard 13.jpg__PID:2e8eae5f-8310-4a25-aa12-8700d0566652
Connections

Connection, type

RJ45 industry industry female (8P8C)

Connection 2, type

RJ45 industry industry female (8P8C)

Kink protection

both sides

Latch protection

both sides

Connection, shielding

yes

Connection, contact material

gold-plated 50µm

Connection, housing material

PVC

Contacting

EIA/TIA-568B

Cable

Specification

CAT 8.1

Cable type

Cat 8.1 raw cable

Shielding class

S/FTP (PiMF)

Number of shieldings

2 x

Type 1, shielding

foil (alu) PiMF

Type 2, shielding

braid (alu) overall shield

AWG

24/7 (stranded)

inner conductor, core diameter

0.2

Inner conductor material

CU (copper)

Material cable sheath

LSZH

Cable sheath diameter (approx.)

8.2 mm

bending radius >

64 mm

LSZH compliant

yes

Cable length

0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m, 20 m, 25 m

Signal transmission

max. bandwidth

2000 MHz

General

Color

Blue

Special feature

Length indication on connector

Operating temperature from

-20 °C

Operating temperature up to

75 °C

Packaging type

Bulk

Warranty

1 year

Dimension / Weight

Weight

50g 82g 136g 212g 320g 625g 920g 1206g 1540g
