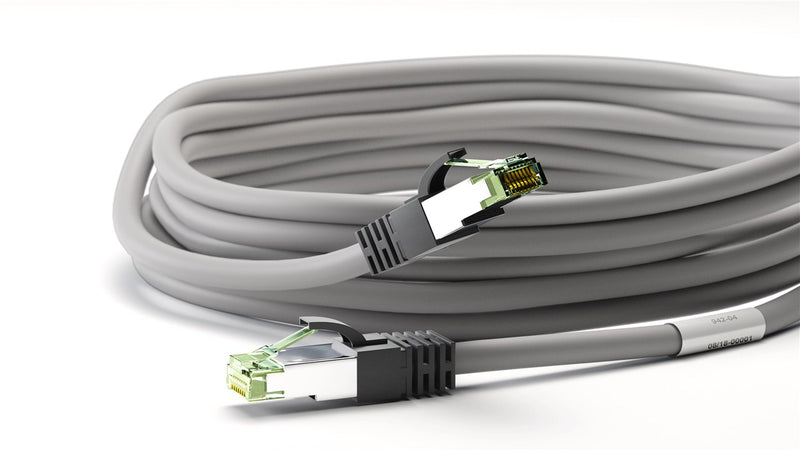

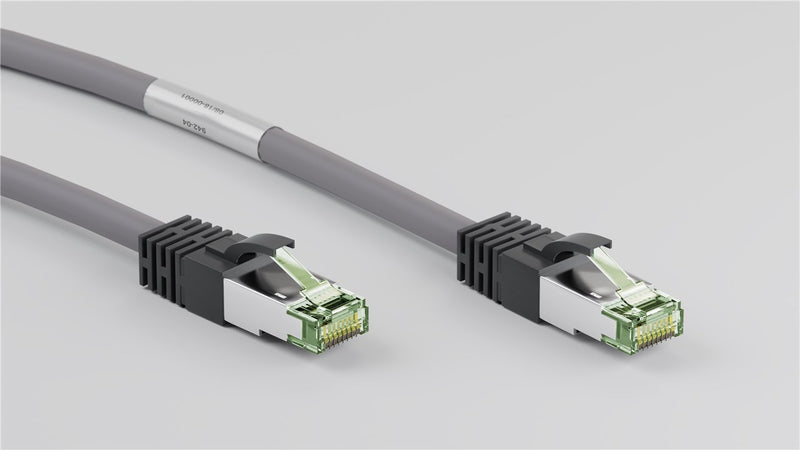

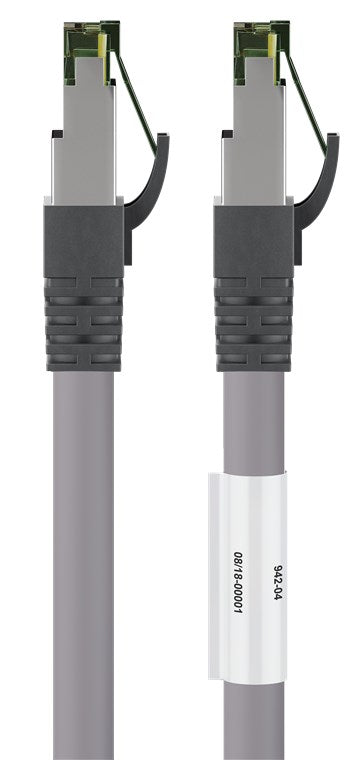

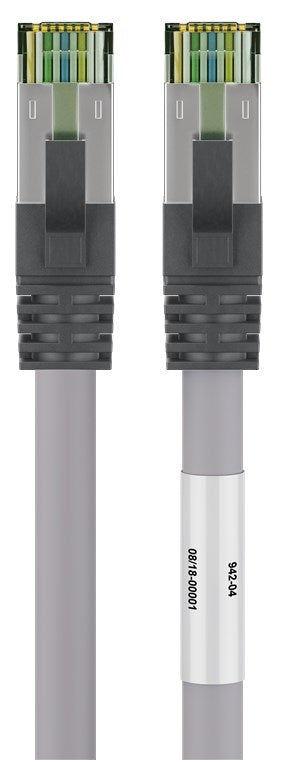

GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Grey

SKU: 55135
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey

GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Grey

SKU: 55135
Cable Length
Regular price Enquire with us
Enquire with us /
  • Rated for use in Malaysia
  • Local Service Center
  • Delivery options available
99.9 % oxygen-free copper conductor (OFC), AWG 24, halogen-free cable sheath (LSZH)

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
  • High-speed internet cable suitable for 25/40GBASE-T Ethernet networks (40 Gigabit-capable) and downward compatible to Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T)
  • With a transmission bandwidth of up to 2 GHz (2,000 MHz), the Ethernet cable has 4 times the bandwidth of CAT 6A cables.
  • Especially suitable for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X
  • New industrial-standard RJ45 plug with 50µ gold-plated contacts and locking lever protection for an excellent network connection
  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
More from Cable 8.1
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Grey
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Grey
Enquire with us Enquire with us
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Blue
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Blue
Enquire with us Enquire with us
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Black
GOOBAY CAT 8.1 S/FTP PIMF LSZH - Black
GOOBAY CAT 8.1 S/FTP PIMF LSZH Patch Cable - Black
Enquire with us Enquire with us
Artboard 1.jpg__PID:755ba68b-fa27-4f73-99c6-167f7f9146b9Artboard 2.jpg__PID:6f755546-af10-41a1-9146-8c8456d6a2e8Artboard 3.jpg__PID:11c51986-e09f-4586-9a41-8c01adcdd764Artboard 4.jpg__PID:63ea8869-8898-4b1a-a0bd-4424a15fef2bArtboard 5.jpg__PID:560aa10d-2734-4756-b153-2c709ac1c5ceArtboard 6.jpg__PID:37a6a025-1795-4c00-bc30-a27eb3aa8174Artboard 7.jpg__PID:699a3d73-056b-42df-83ff-36ee4cfc35d4Artboard 8.jpg__PID:df6ad14a-b2a2-405f-b9e9-a304deb8b69fArtboard 9.jpg__PID:90c64c40-9dea-42a4-9a37-8e5976a9933cArtboard 12.jpg__PID:a2bffe35-1a72-493d-b77f-578789a596d8Artboard 13.jpg__PID:2e8eae5f-8310-4a25-aa12-8700d0566652
Connections

Connection, type

RJ45 industry industry female (8P8C)

Connection 2, type

RJ45 industry industry female (8P8C)

Kink protection

both sides

Latch protection

both sides

Connection, shielding

yes

Connection, contact material

gold-plated 50µm

Connection, housing material

PVC

Contacting

EIA/TIA-568B

Cable

Specification

CAT 8.1

Cable type

Cat 8.1 raw cable

Shielding class

S/FTP (PiMF)

Number of shieldings

2 x

Type 1, shielding

foil (alu) PiMF

Type 2, shielding

braid (alu) overall shield

AWG

24/7 (stranded)

inner conductor, core diameter

0.2

Inner conductor material

CU (copper)

Material cable sheath

LSZH

Cable sheath diameter (approx.)

8.2 mm

bending radius >

64 mm

LSZH compliant

yes

Cable length

0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m, 20 m, 25 m

Signal transmission

max. bandwidth

2000 MHz

General

Color

Grey

Special feature

Length indication on connector

Operating temperature from

-20 °C

Operating temperature up to

75 °C

Packaging type

Bulk

Warranty

1 year

Dimension / Weight

Weight

46g 78g 139g 200g 325g 625g 920g 1235g 1540g
